Goal

Project Brief

The aim is to design an assisted living senior center with private quarters for long or short term living that have a direct connection to public support services, such as nursing, catering, cleaning, etc. The building housing the function is Refik Saydam Hıfzısıhha Enstitüsü in Sıhhiye, Ankara. It is a two-storey building with an area of approximately 2,000 m2. Since the target group was elderly people, the design shaped according to their special needs and conditions.
Fall 2020-2021, Group Project

Presentation

Visual Gallery

All Categories Conceptual Studies Technical Drawings 3D Renders

conceptual study

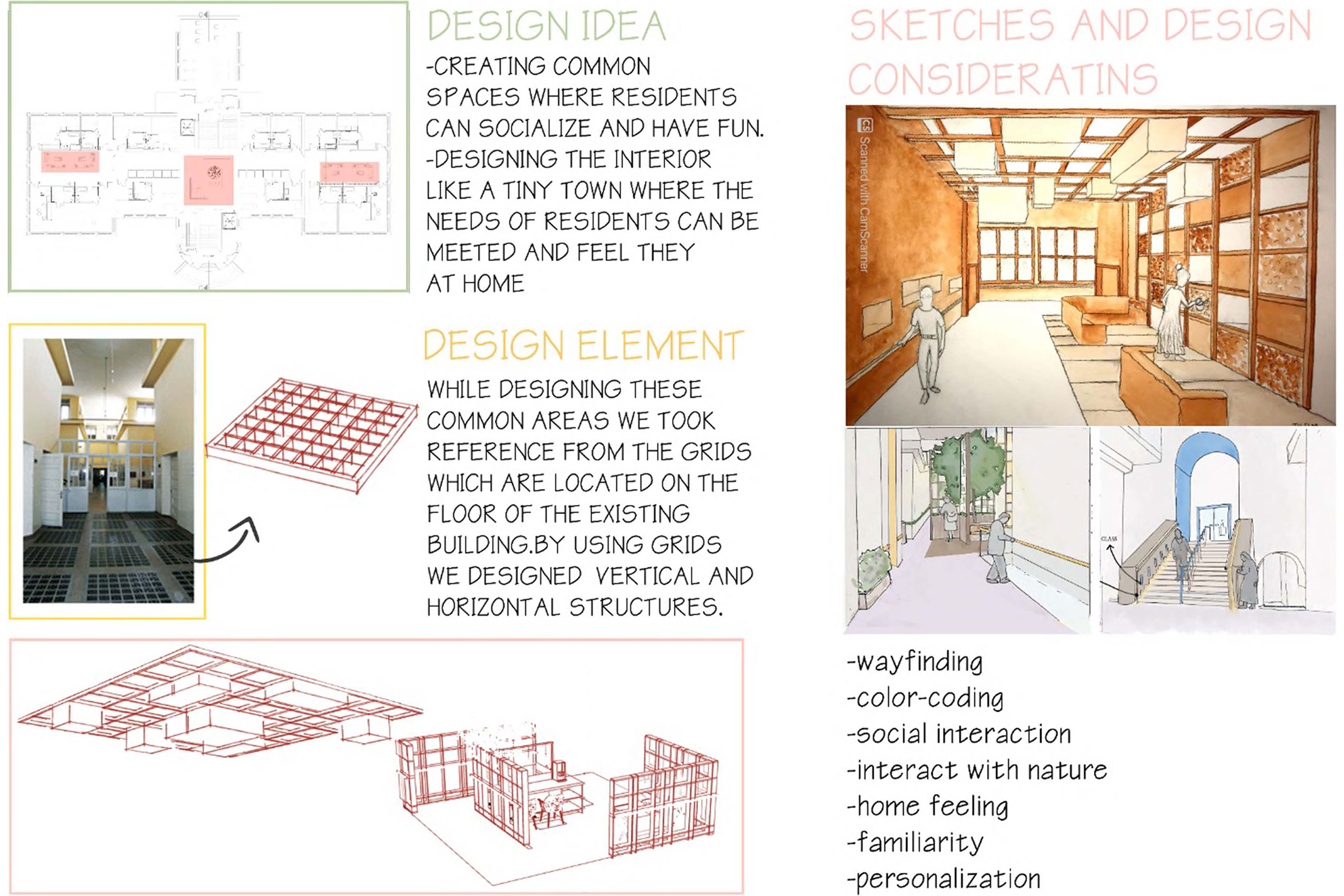

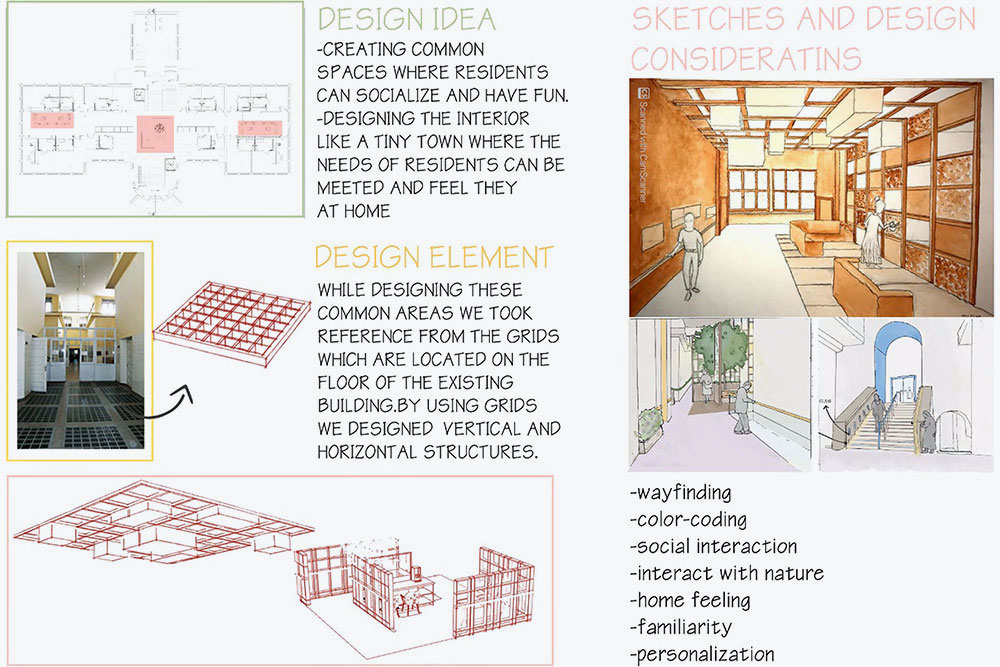

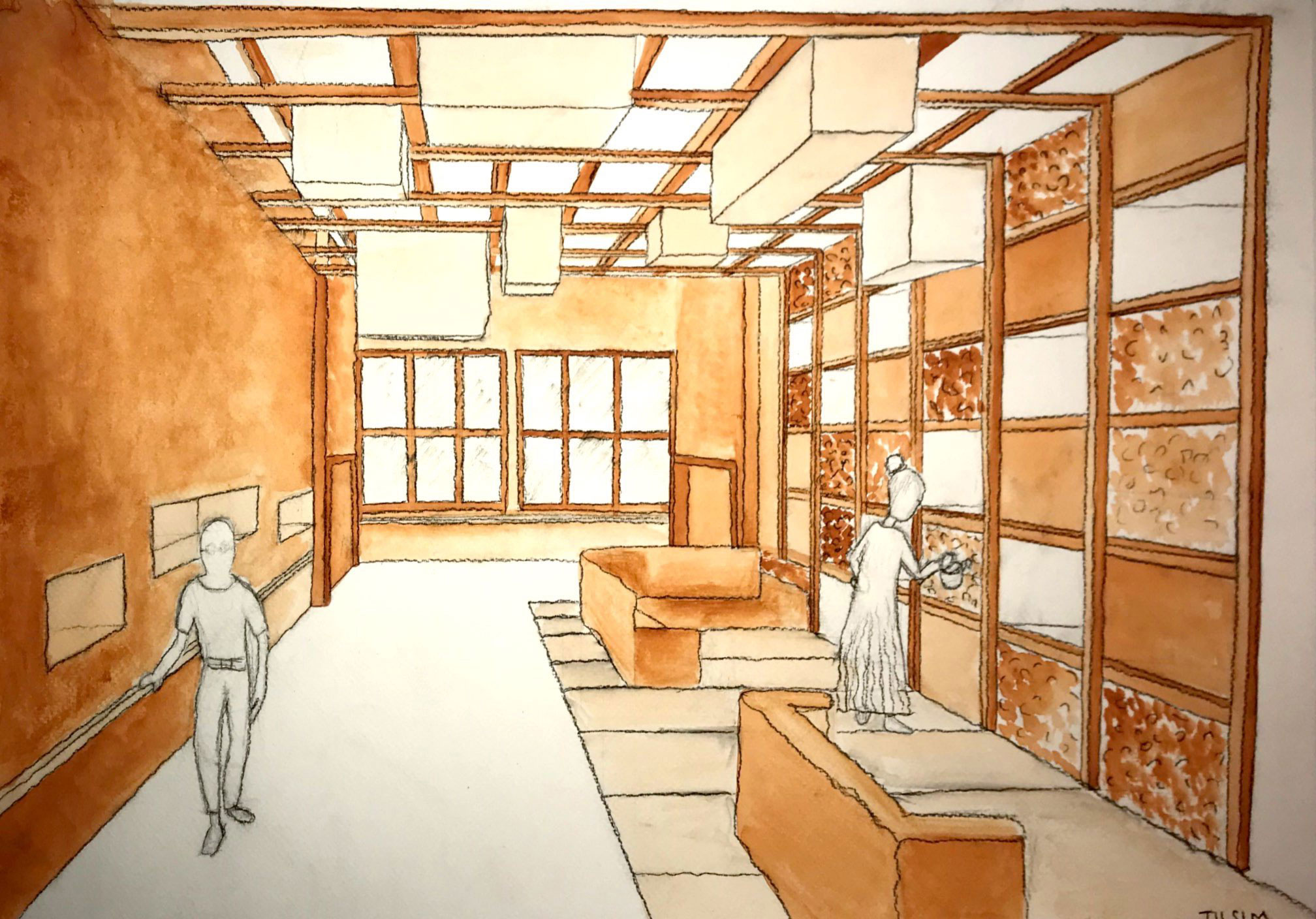

Concept Board

Design idea, elements and considerations

technical drawing

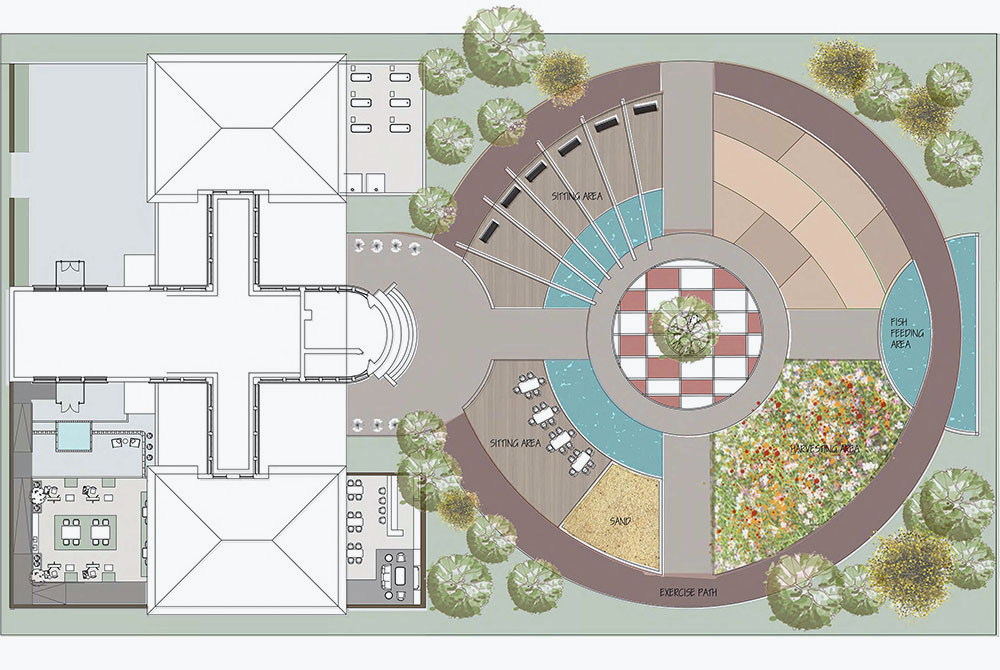

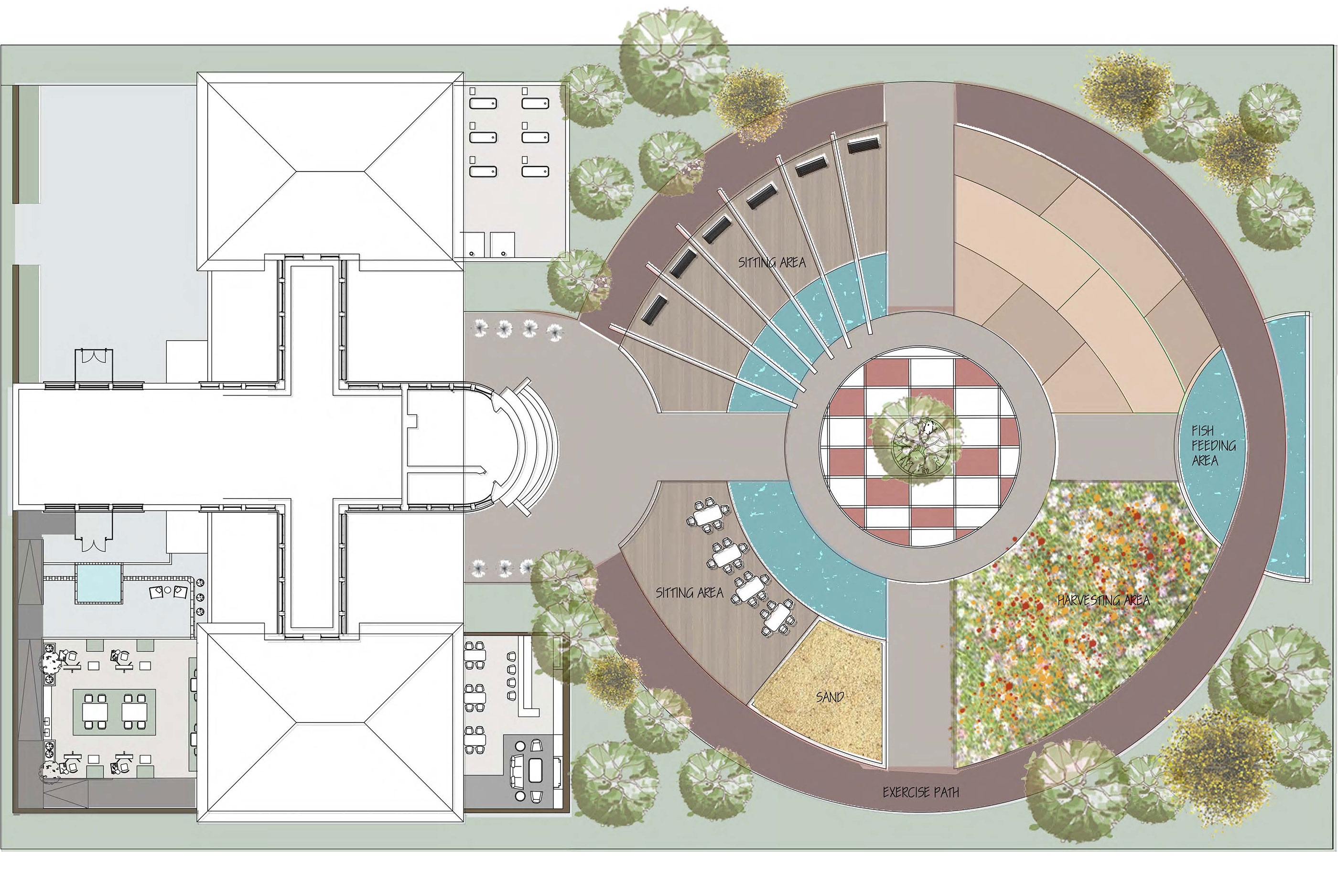

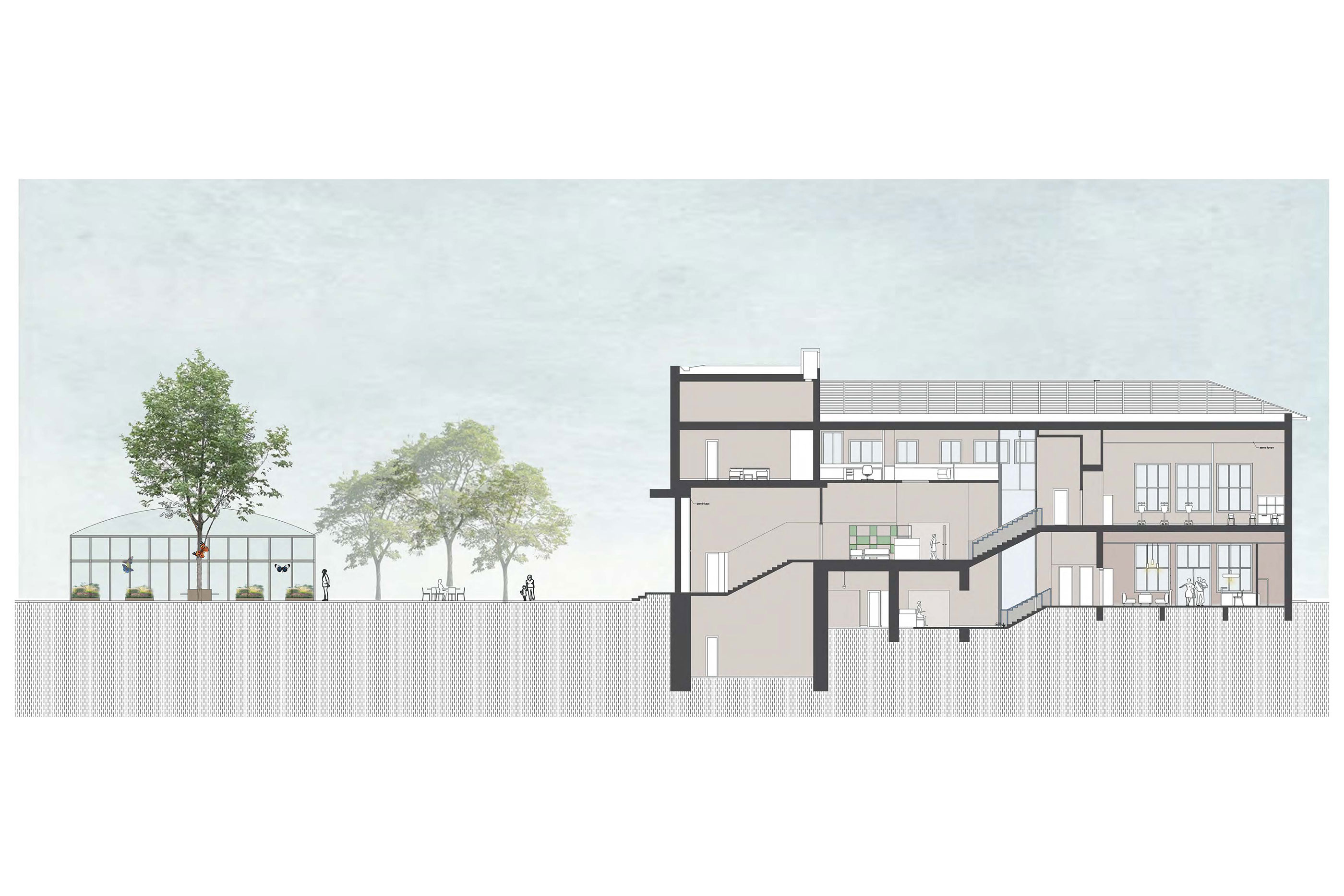

Site Plan

A large garden is designed according to elderly needs and conditions. They can walk, sit, exercise, plant, enjoy the pool and spend time when their loved ones come

3d render

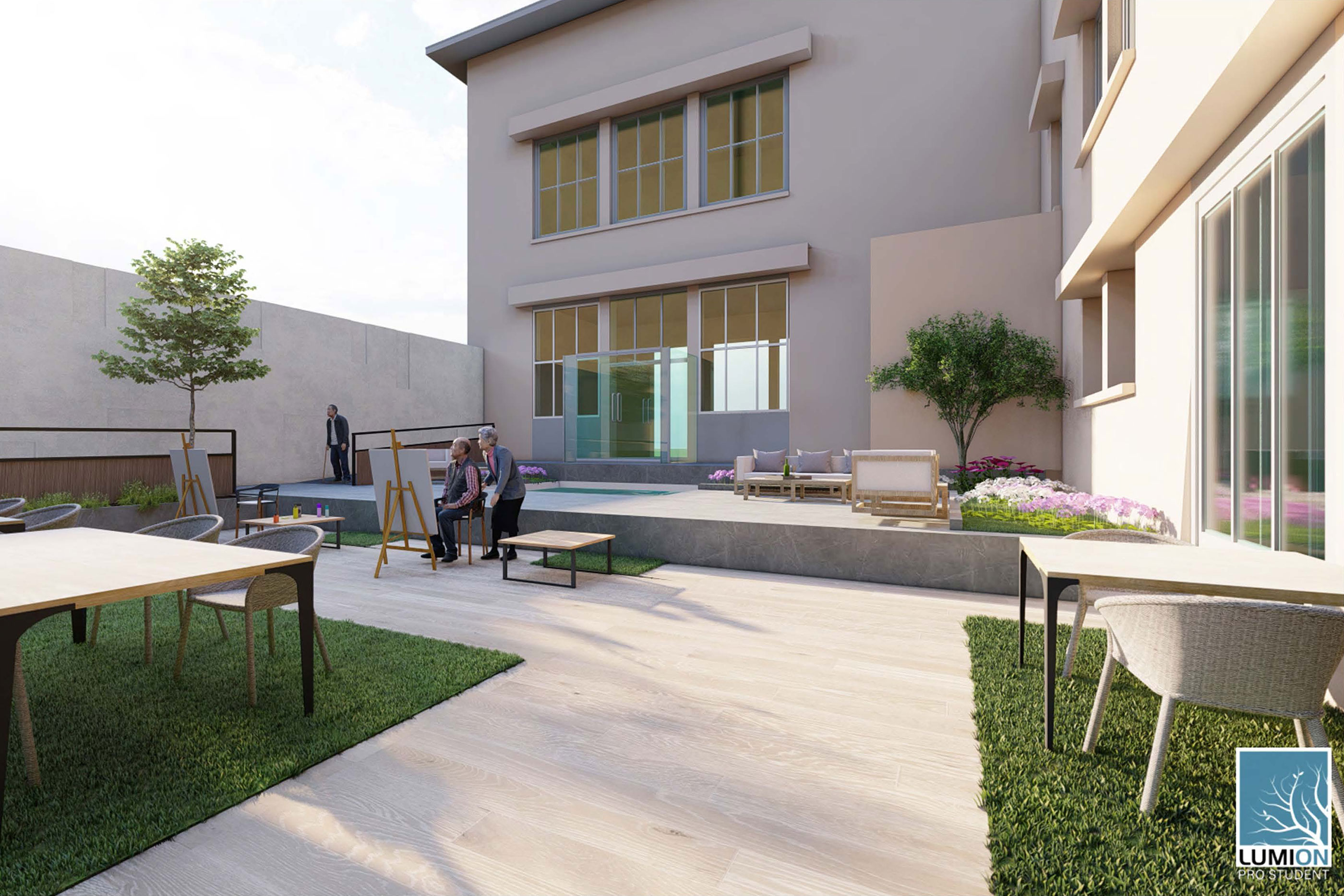

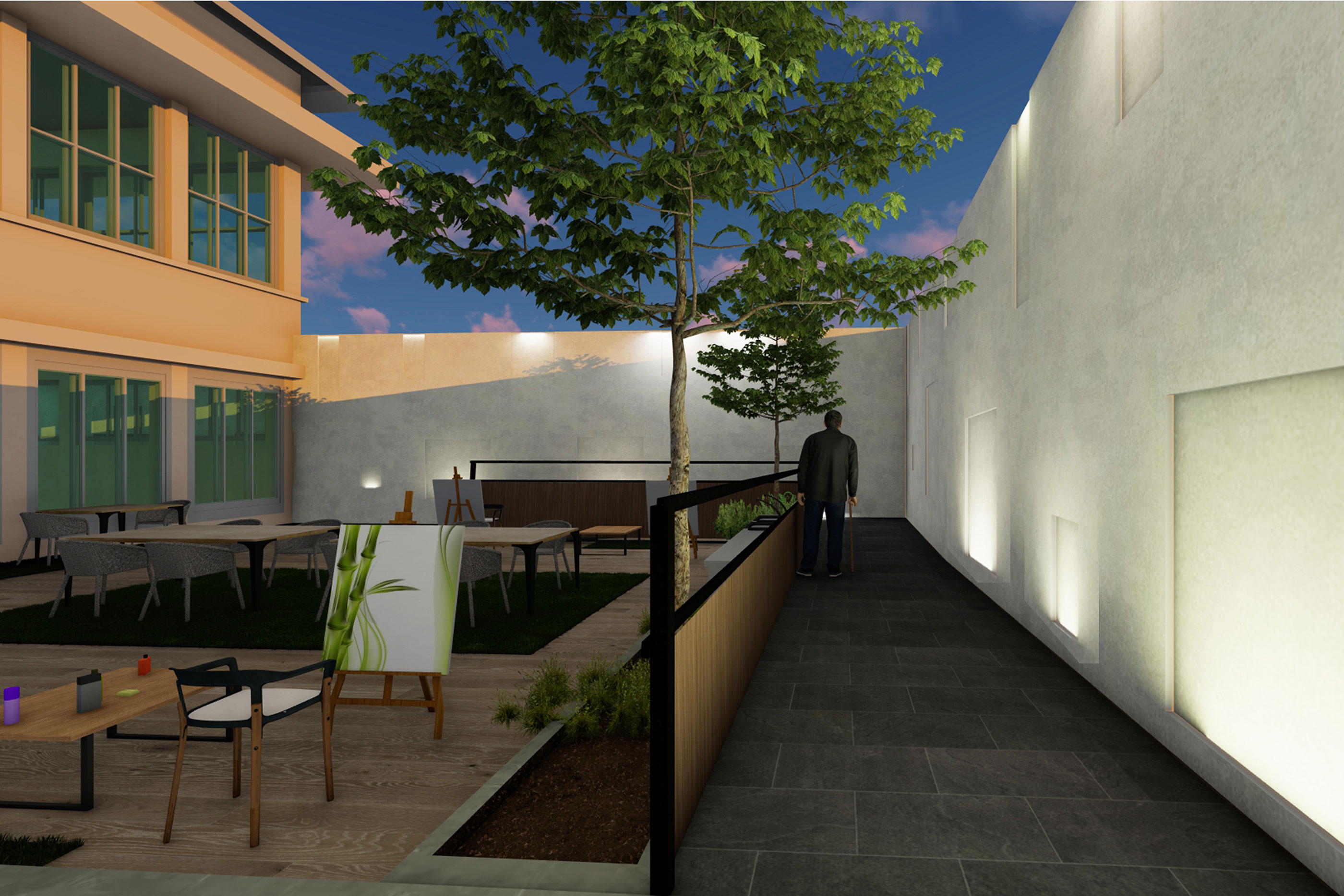

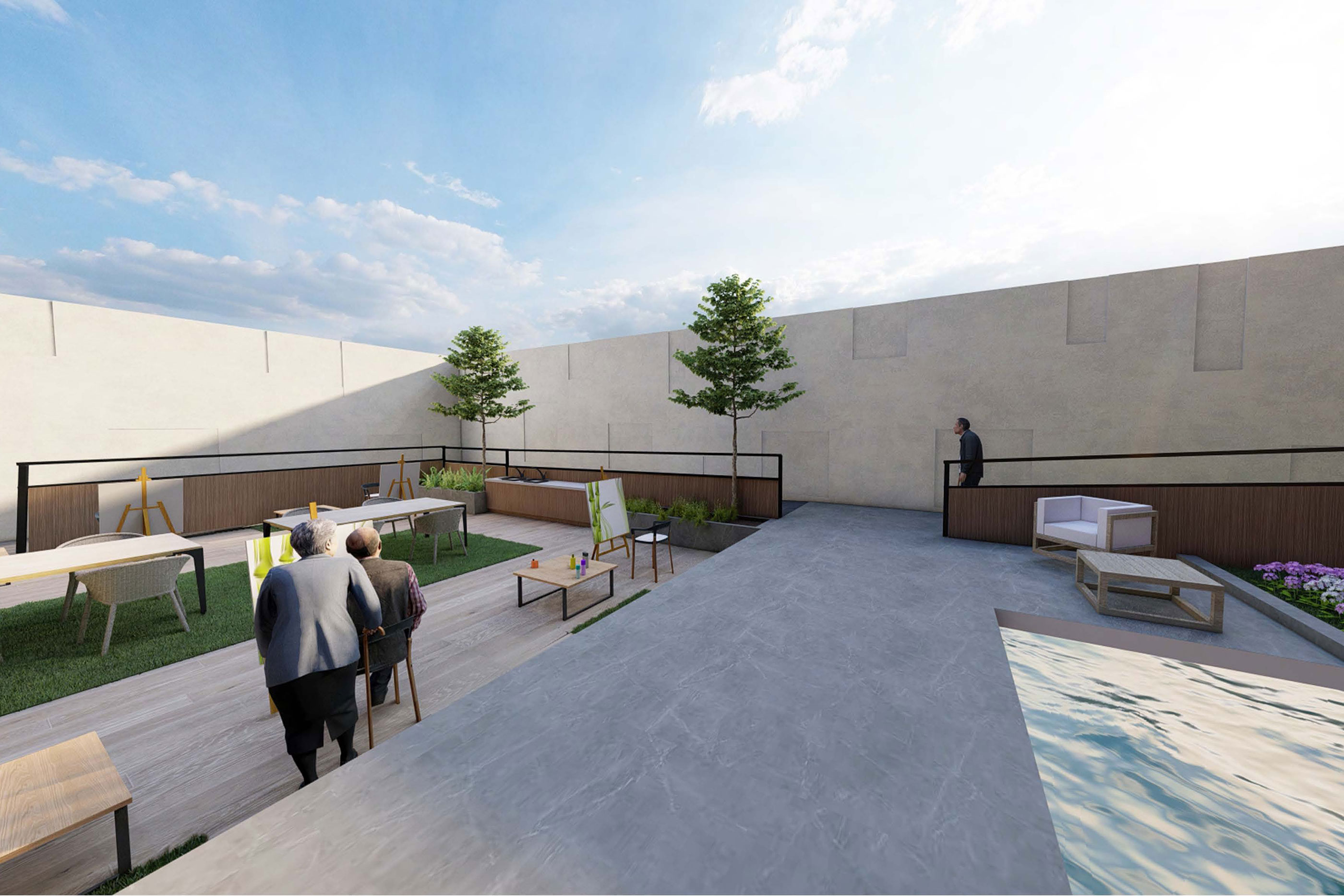

Outdoor Activity Area

Outdoor activities such as painting, playing games, etc. can be held during nice weather

3d render

Outdoor Activity Area

Butterfly garden and pond is located outside for various hobbies

3d render

Outdoor Activity Area

Outdoor garden can be reached from the controlled entrance in reception area

technical drawing

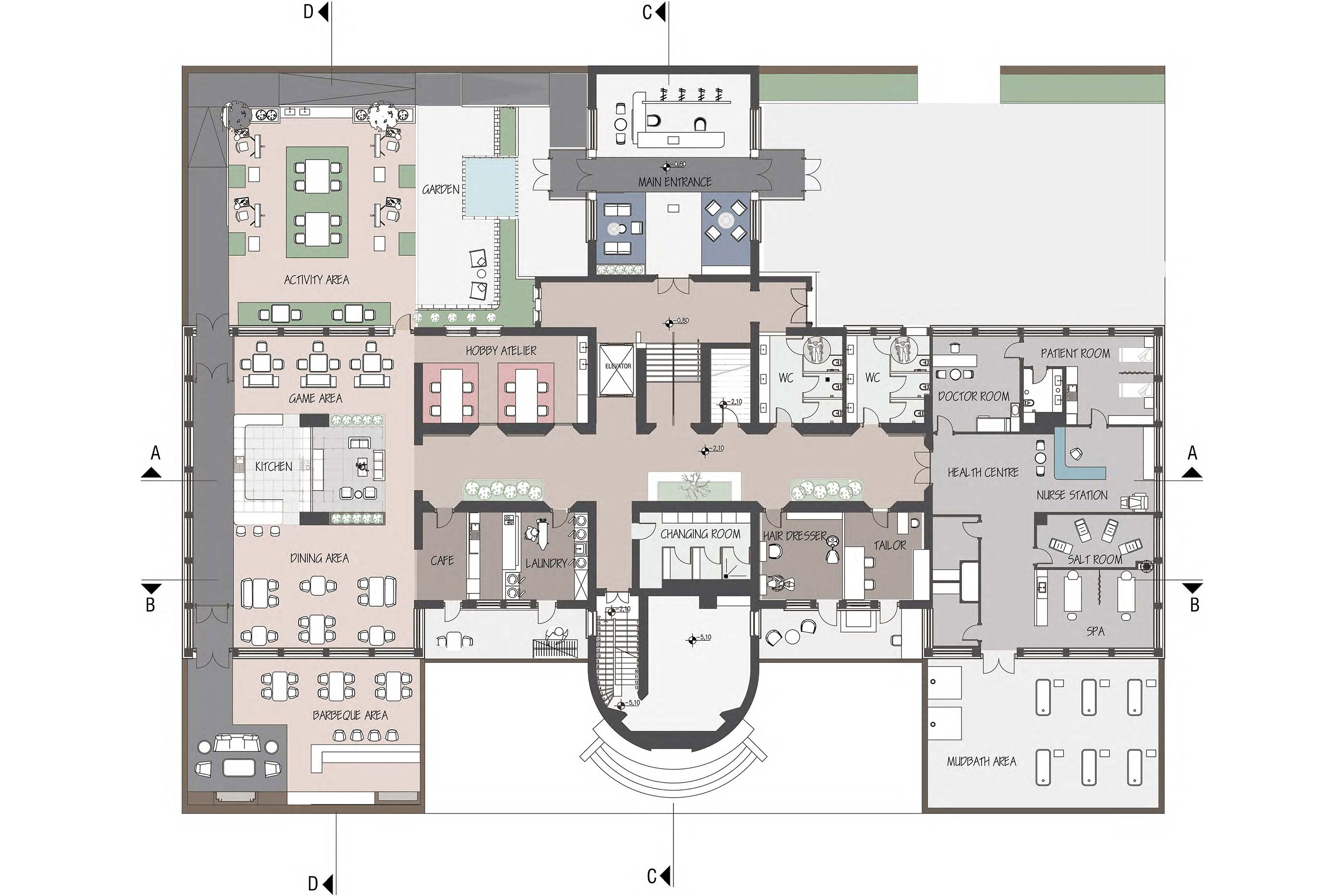

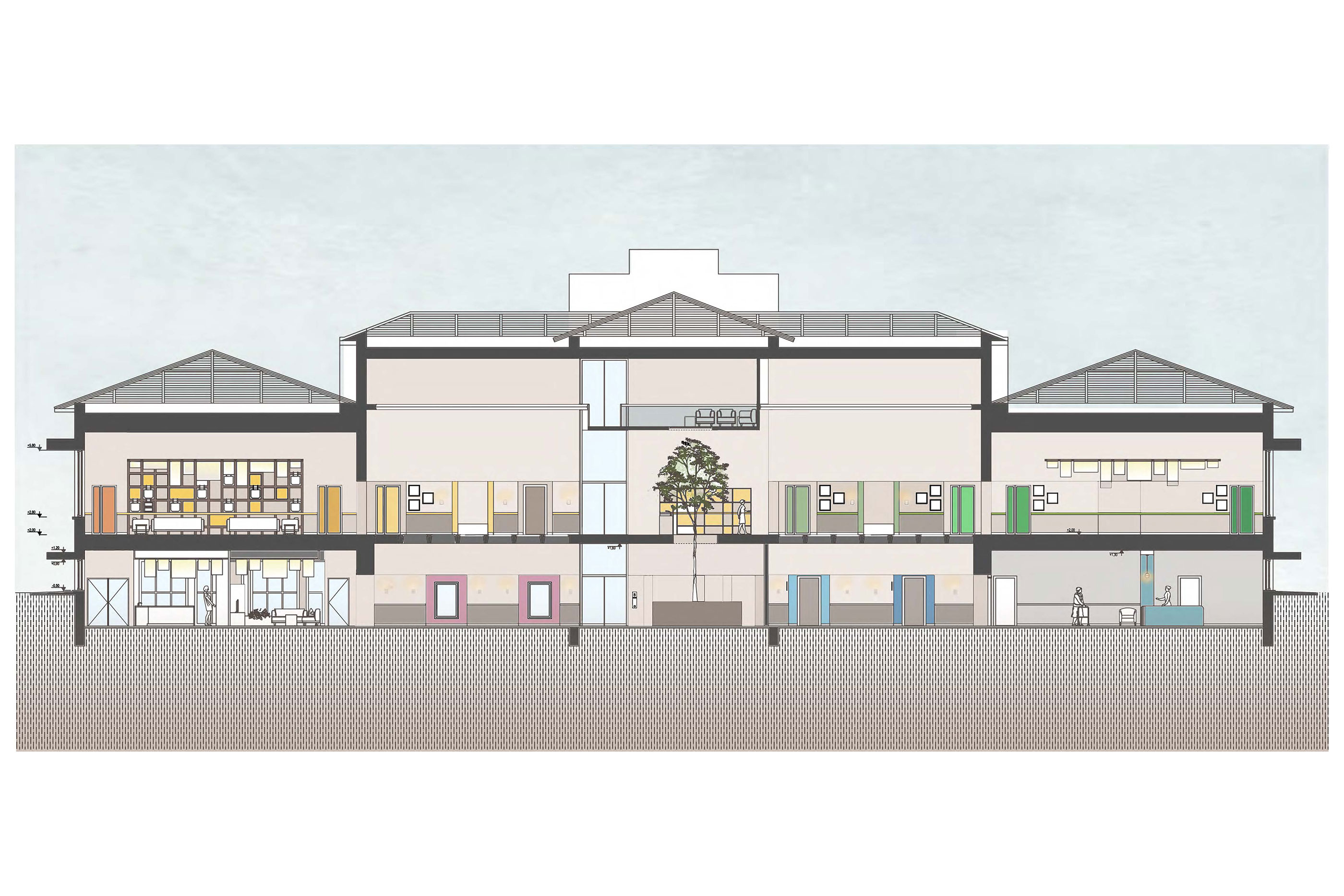

Basement Floor Plan

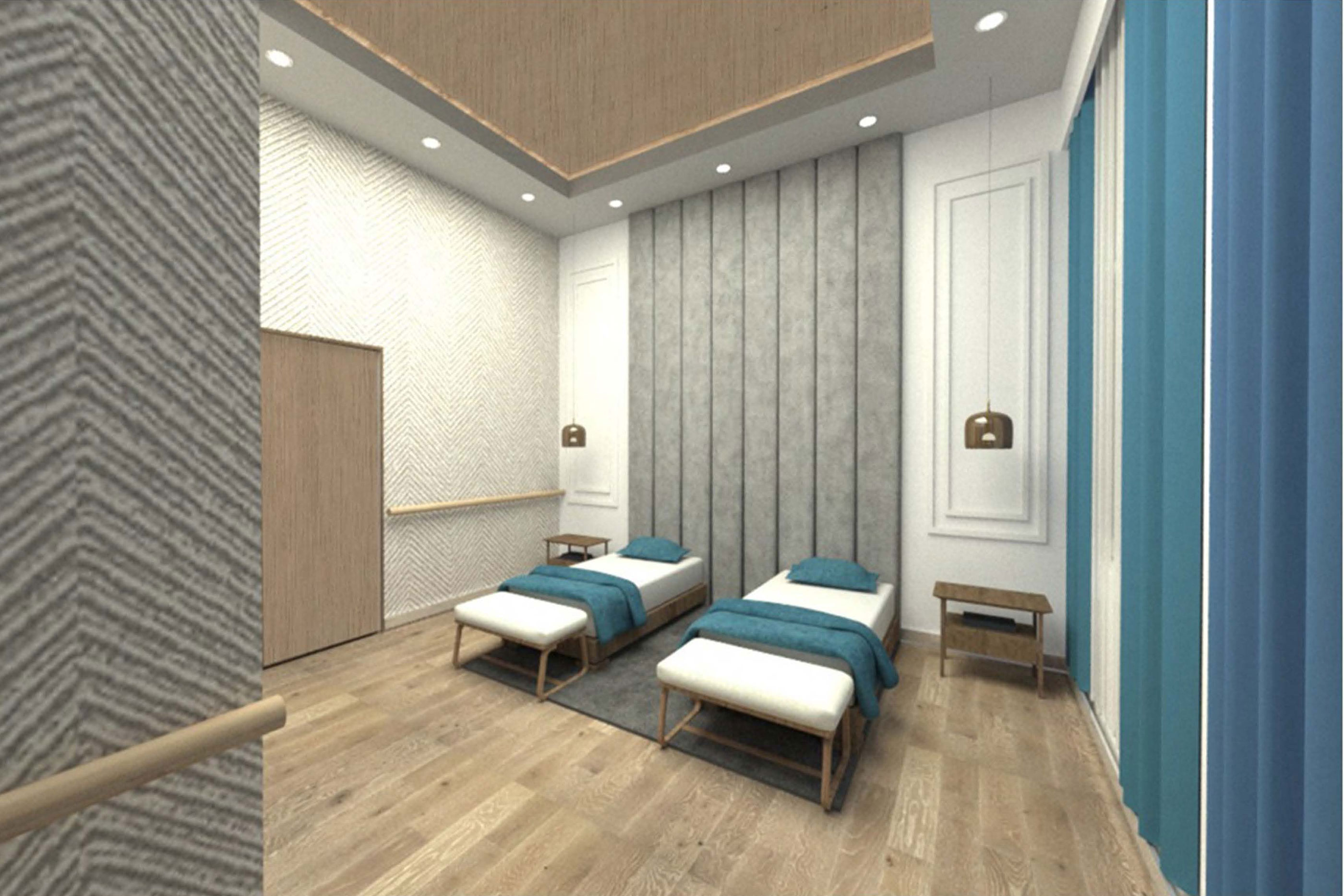

At this level, left wing is reserved for main living area of the residents, highlighted with shades of pink while the right wing is reserved for health center, highlighted with the shades of blue

3d render

Basement Corridor

There is a tree which starts at the basement level continues until the end of mezzanine level

3d render

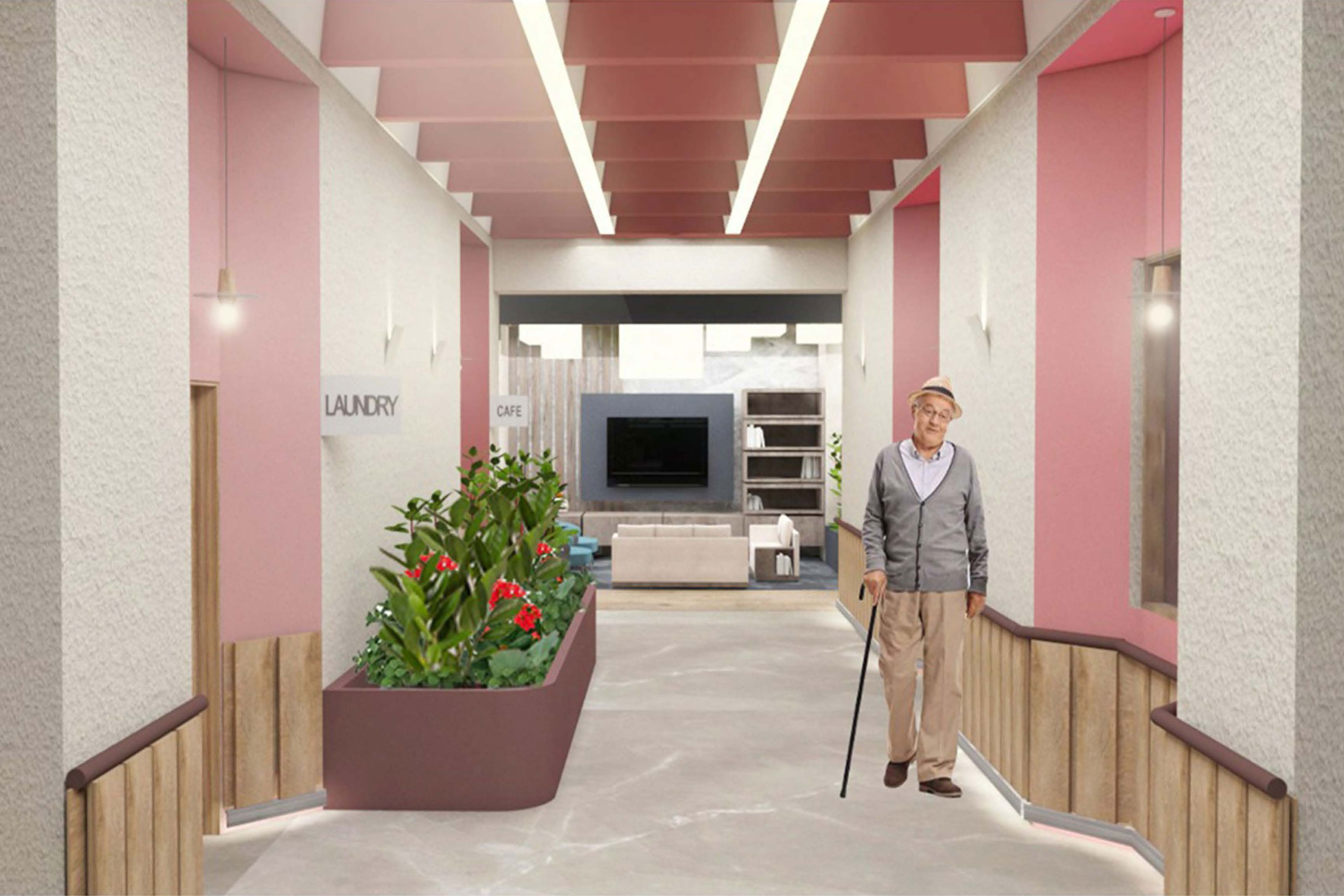

Basement Corridor

In this wing, shades of pink creates color-coding for elderly to remember where they are easily. All the functions are labelled with a signboard

3d render

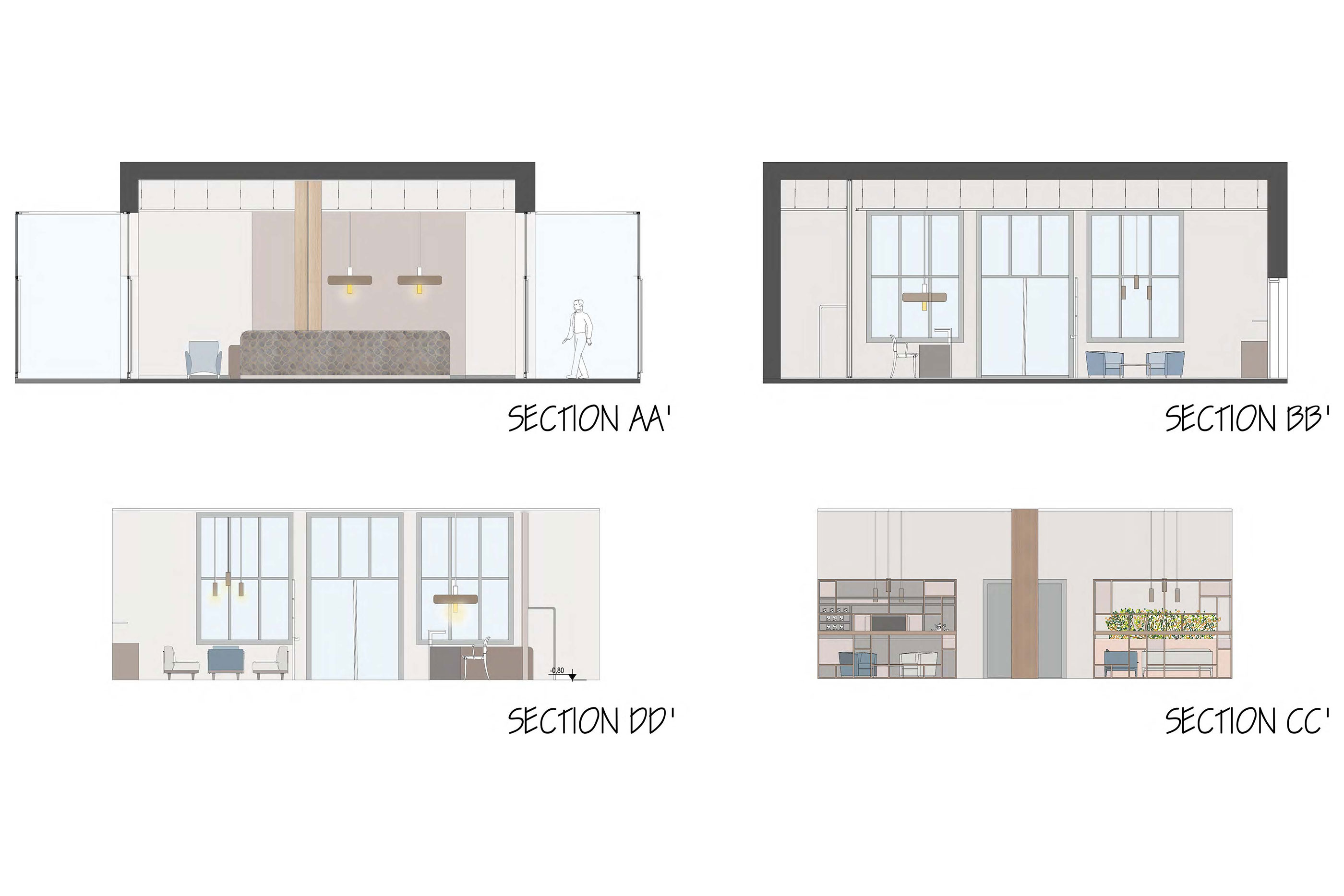

Living Area

At the middle, there is an area for elderly to watch television, chit-chat and read books

3d render

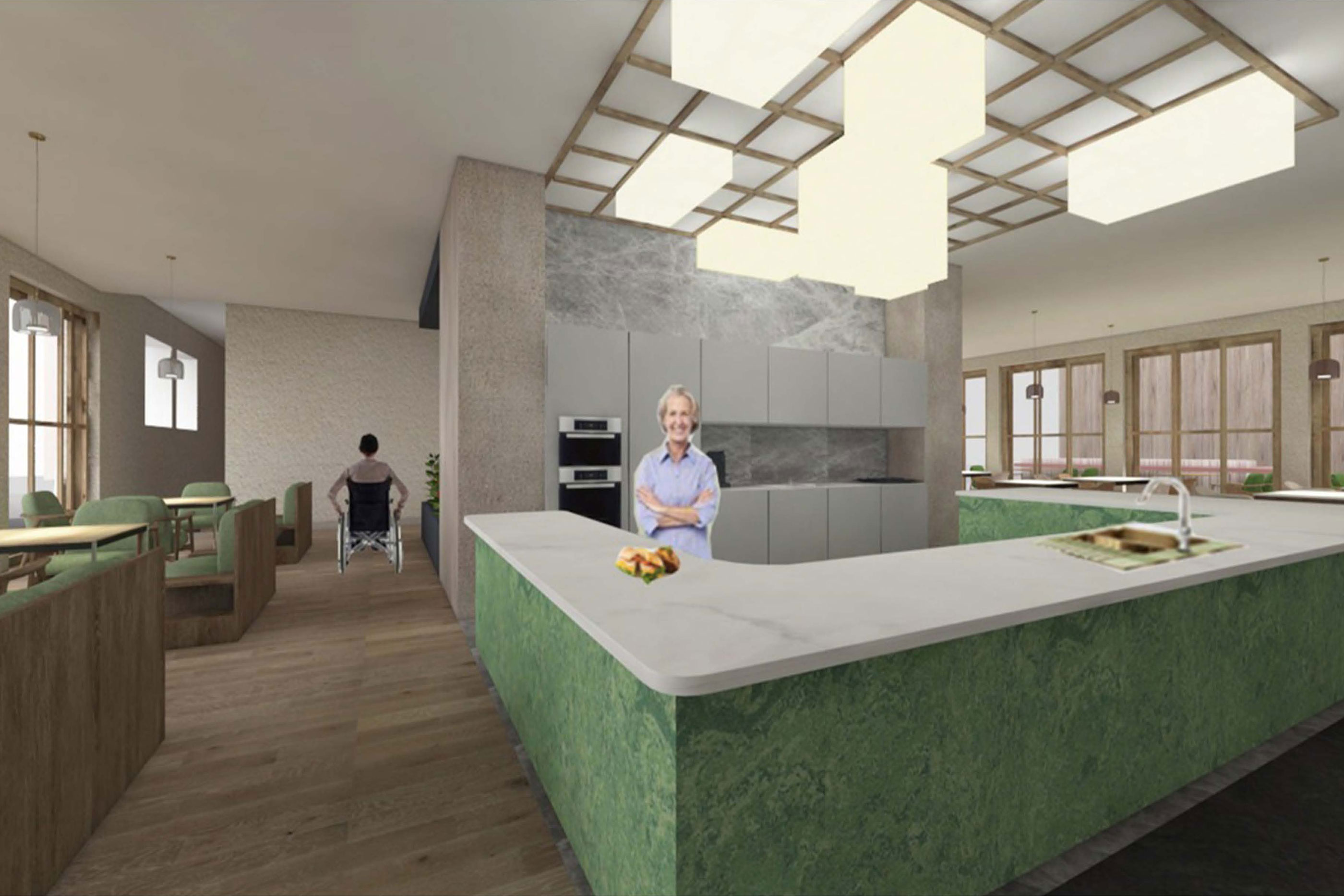

Kitchen

Kitchen is for both residents and the food handlers. Residents can cook themselves and serve to their friends. Also their meal is being prepared in this kitchen

3d render

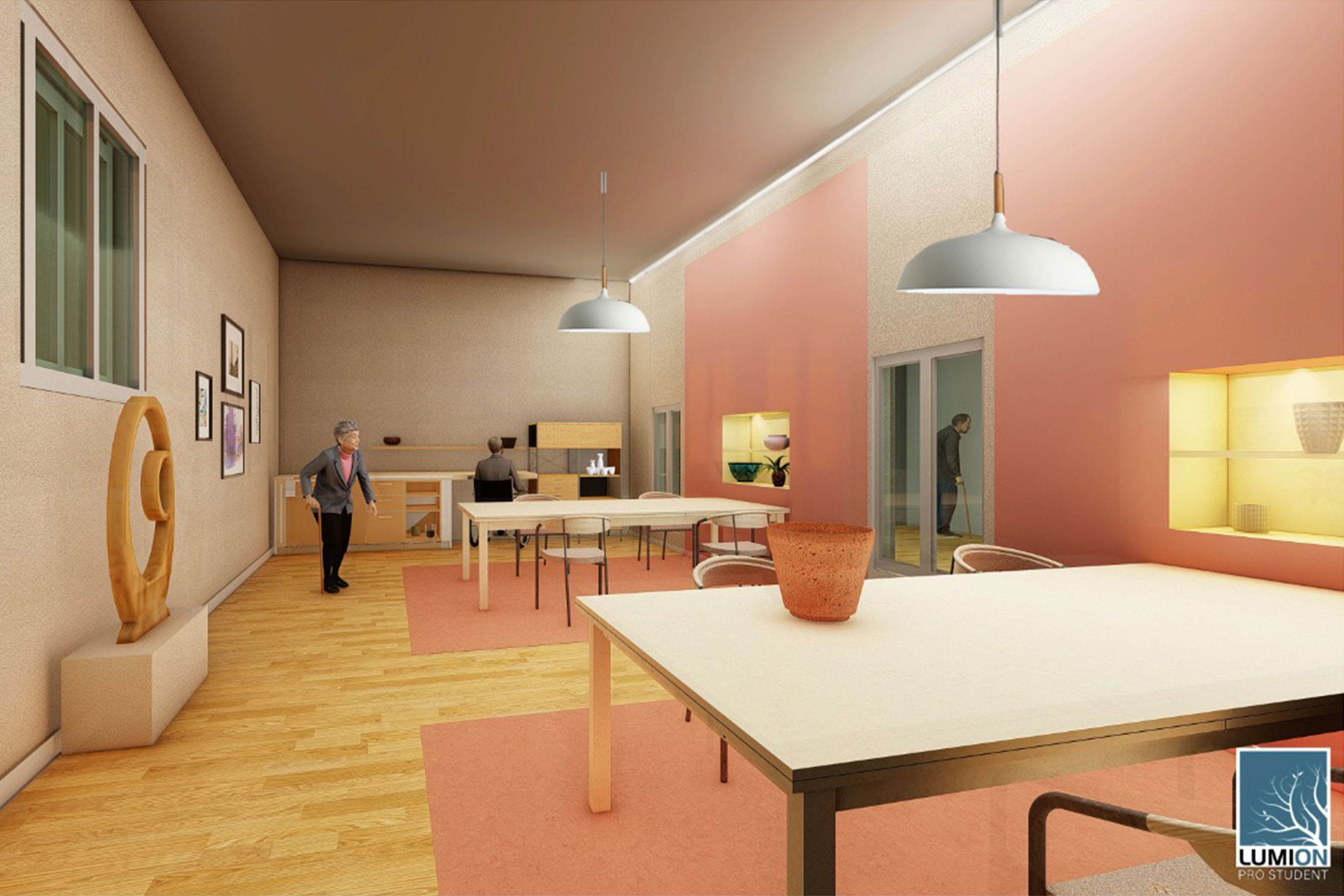

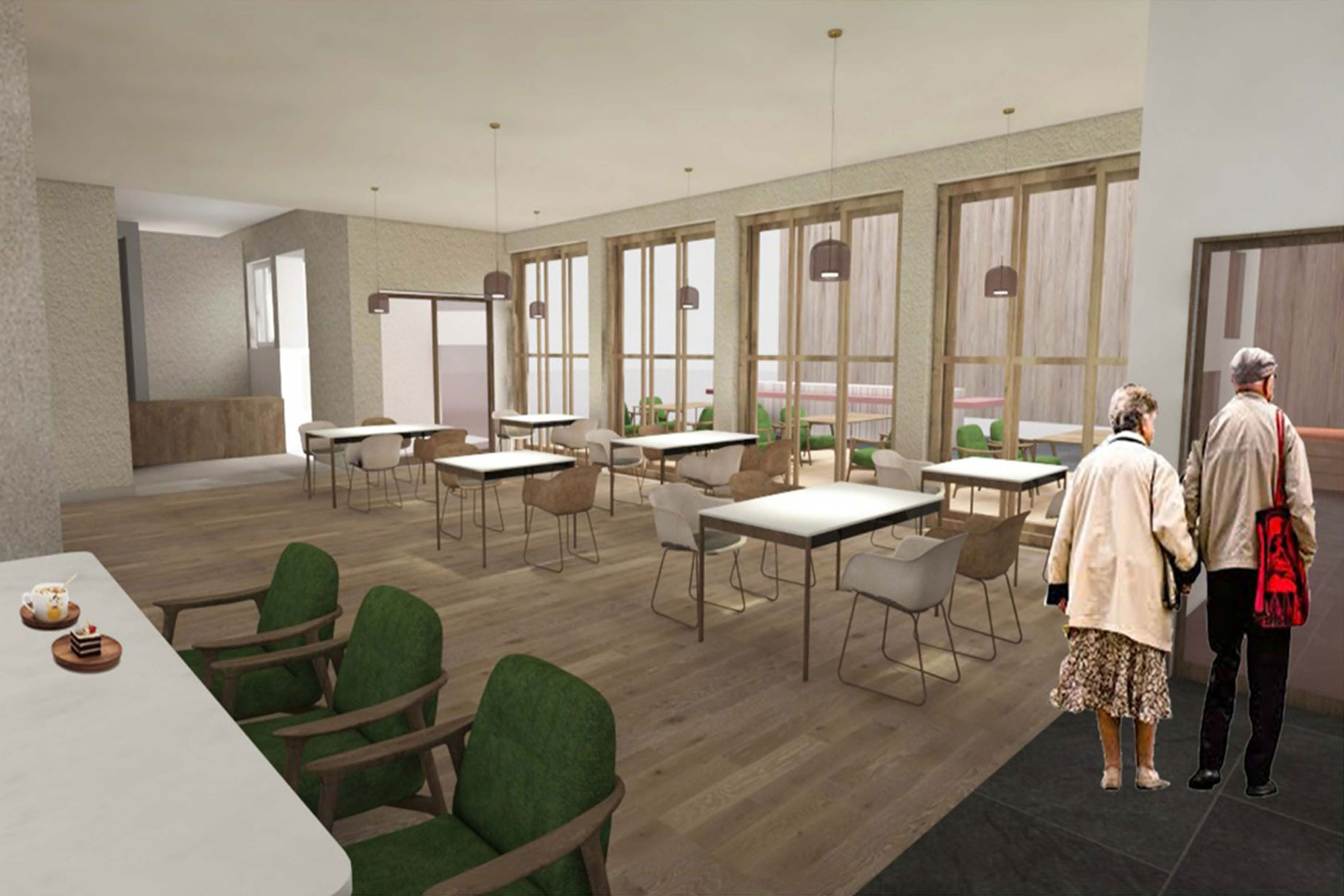

Dining Area

Dining area can be used during meal times. Also the residents can use outdoor dining area for dining or barbeque

3d render

Game Area

Game area is provided to have fun and quality time. The seating units are designed according to store gaming boxes

3d render

Hobby Atelier

In here, they can do artwork, painting, ceramic, sewing, etc. whatever they want. They can also move their equipments to the outdoor garden from the back door and enjoy the weather

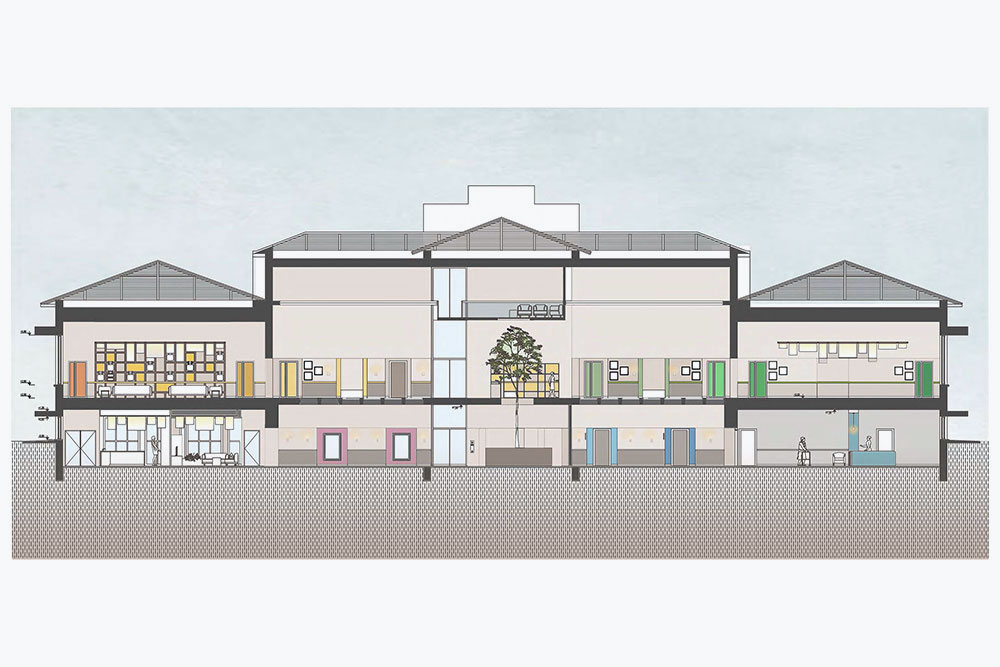

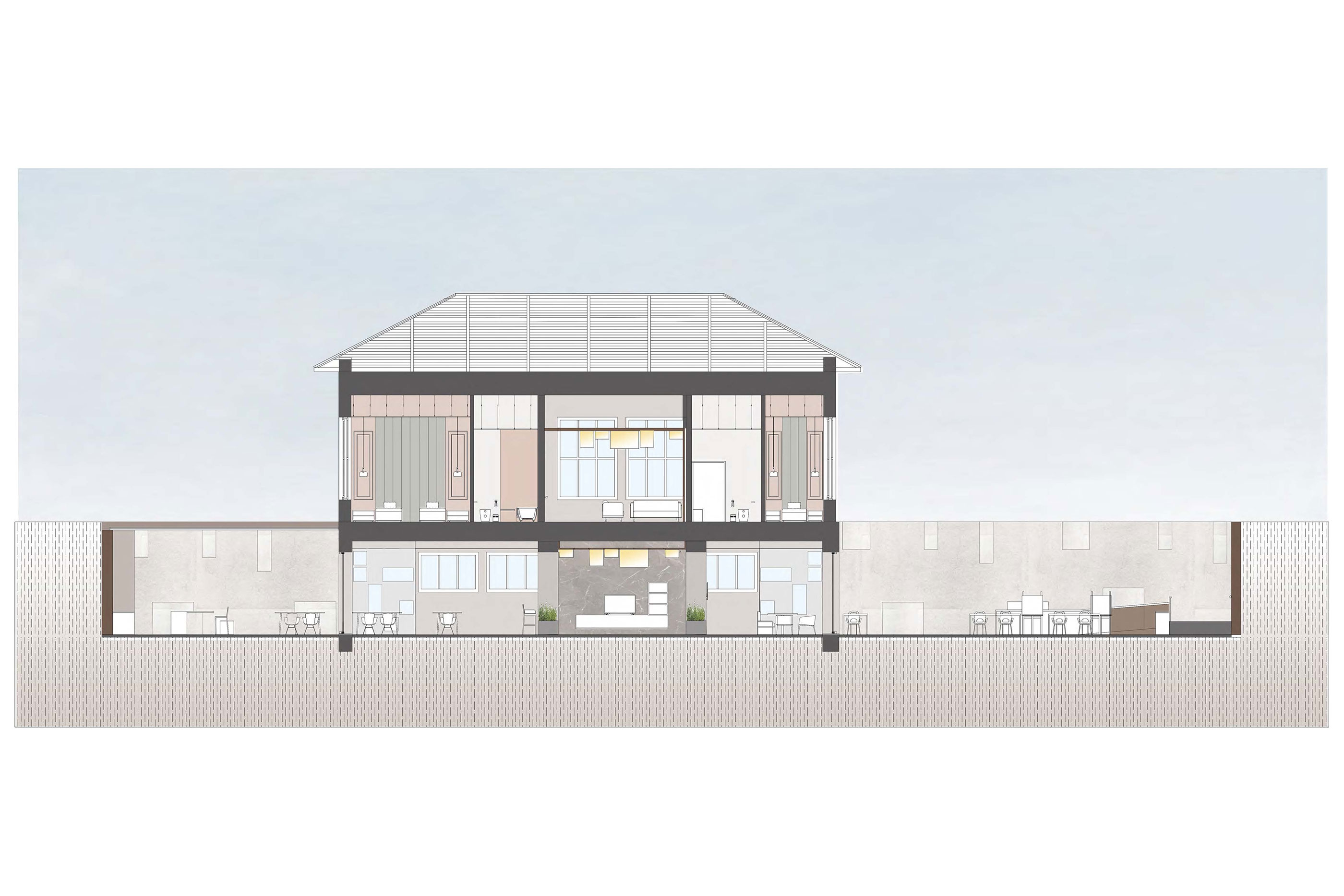

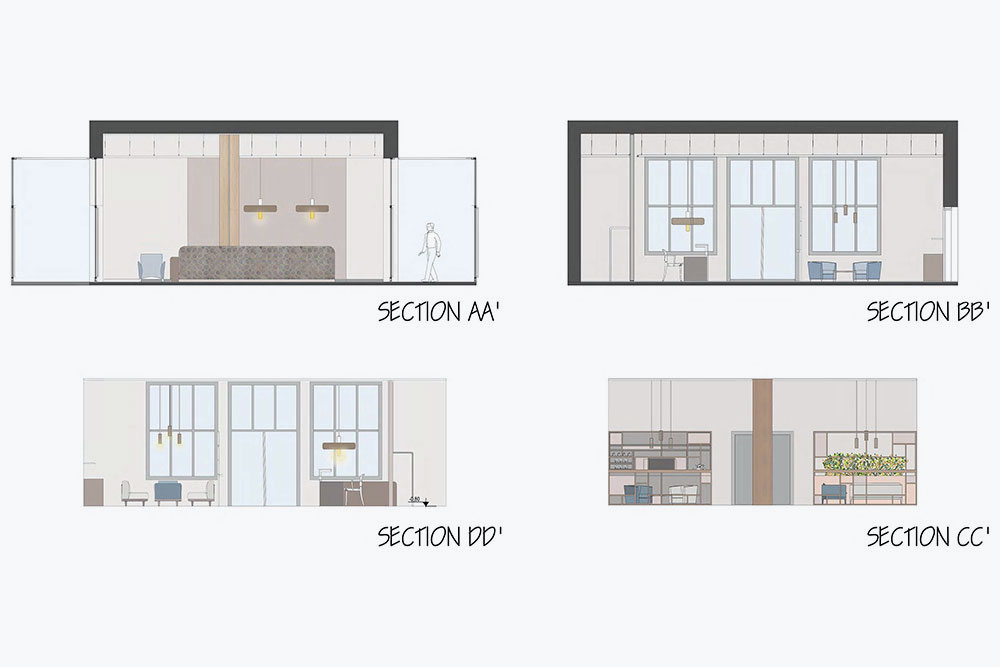

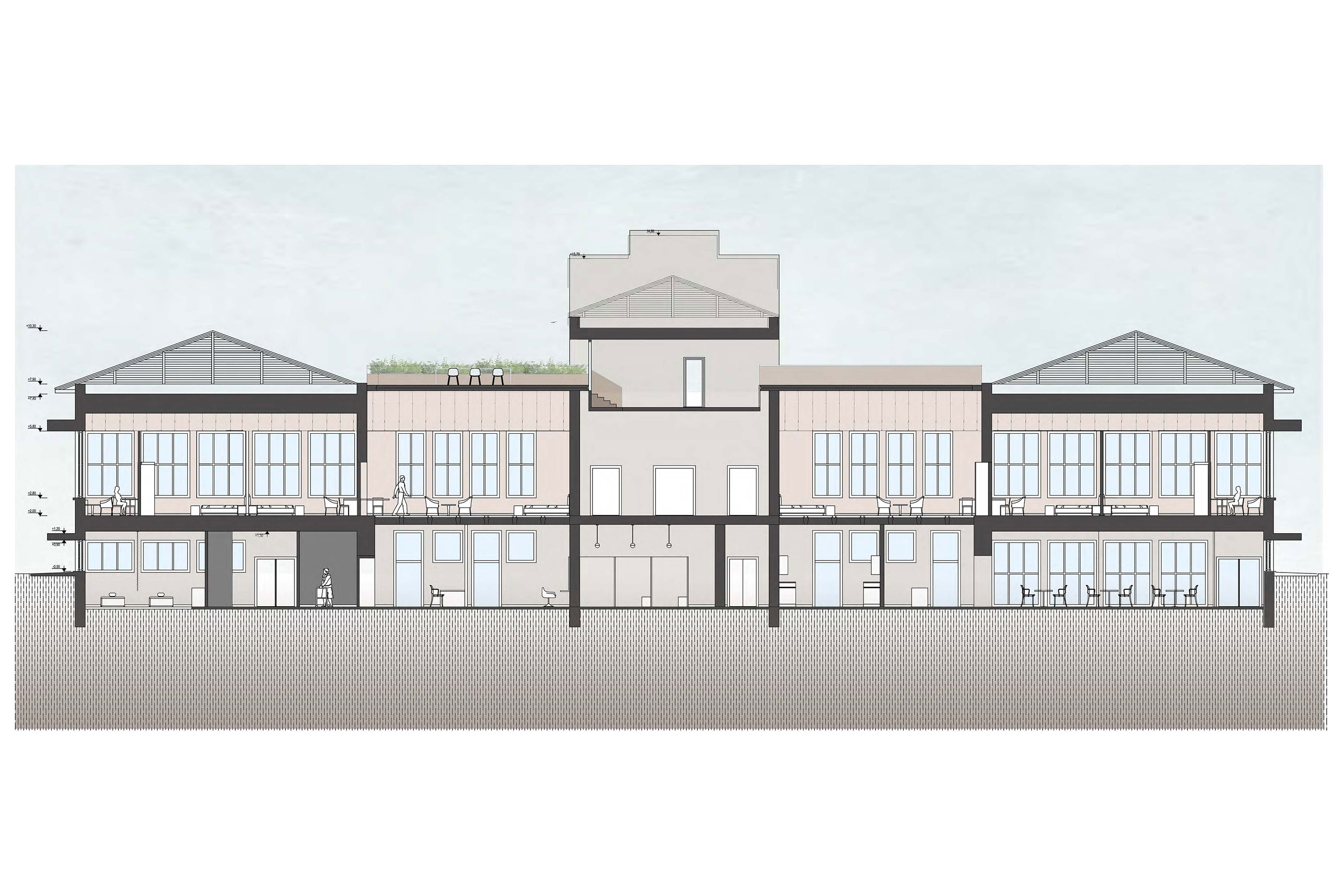

technical drawing

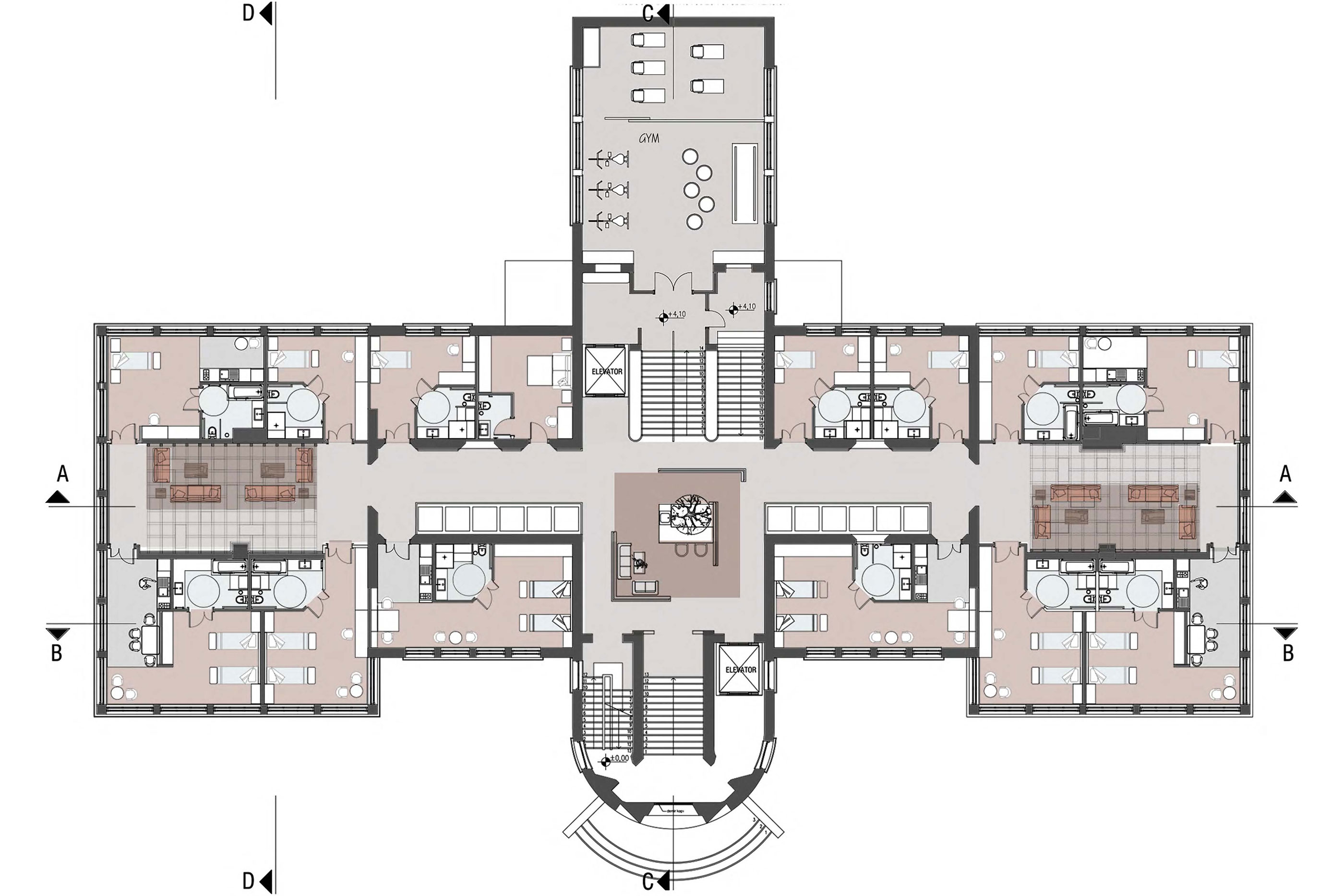

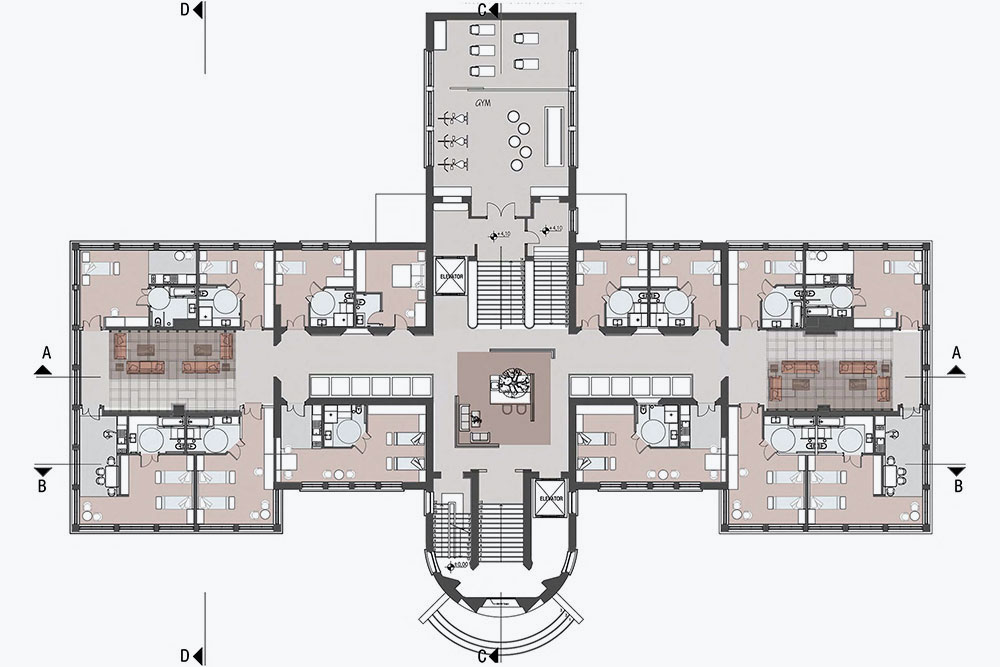

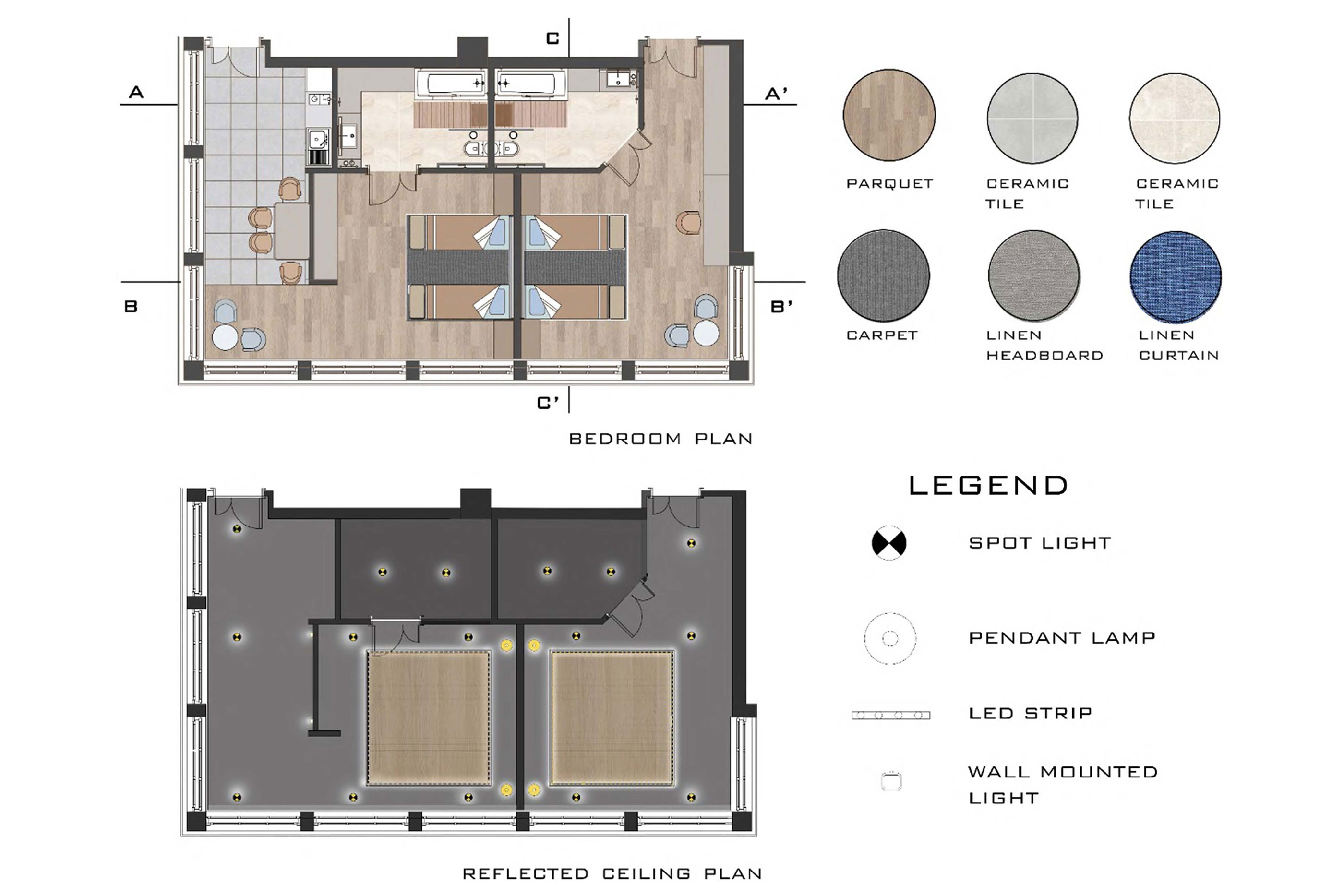

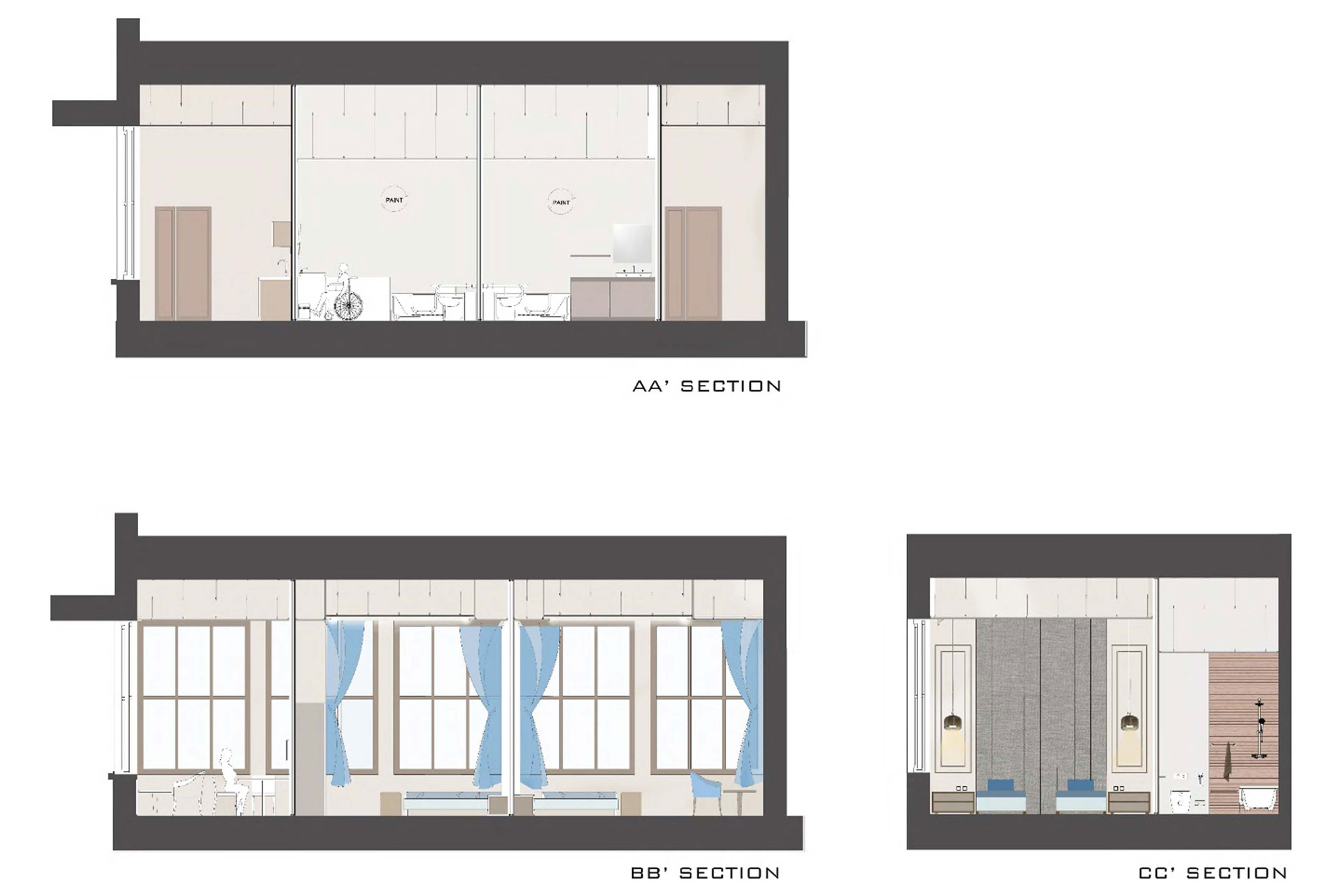

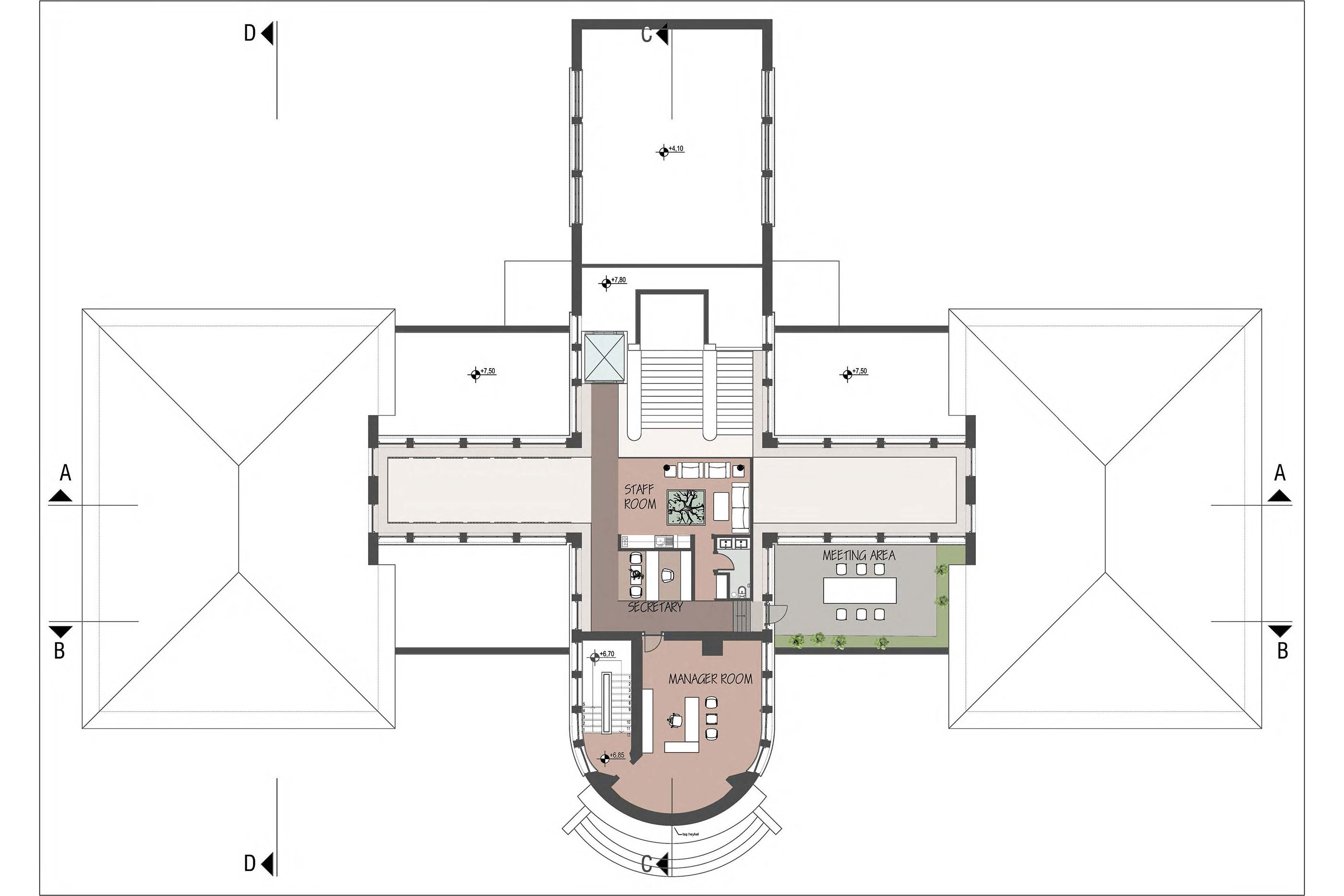

Ground Floor Plan

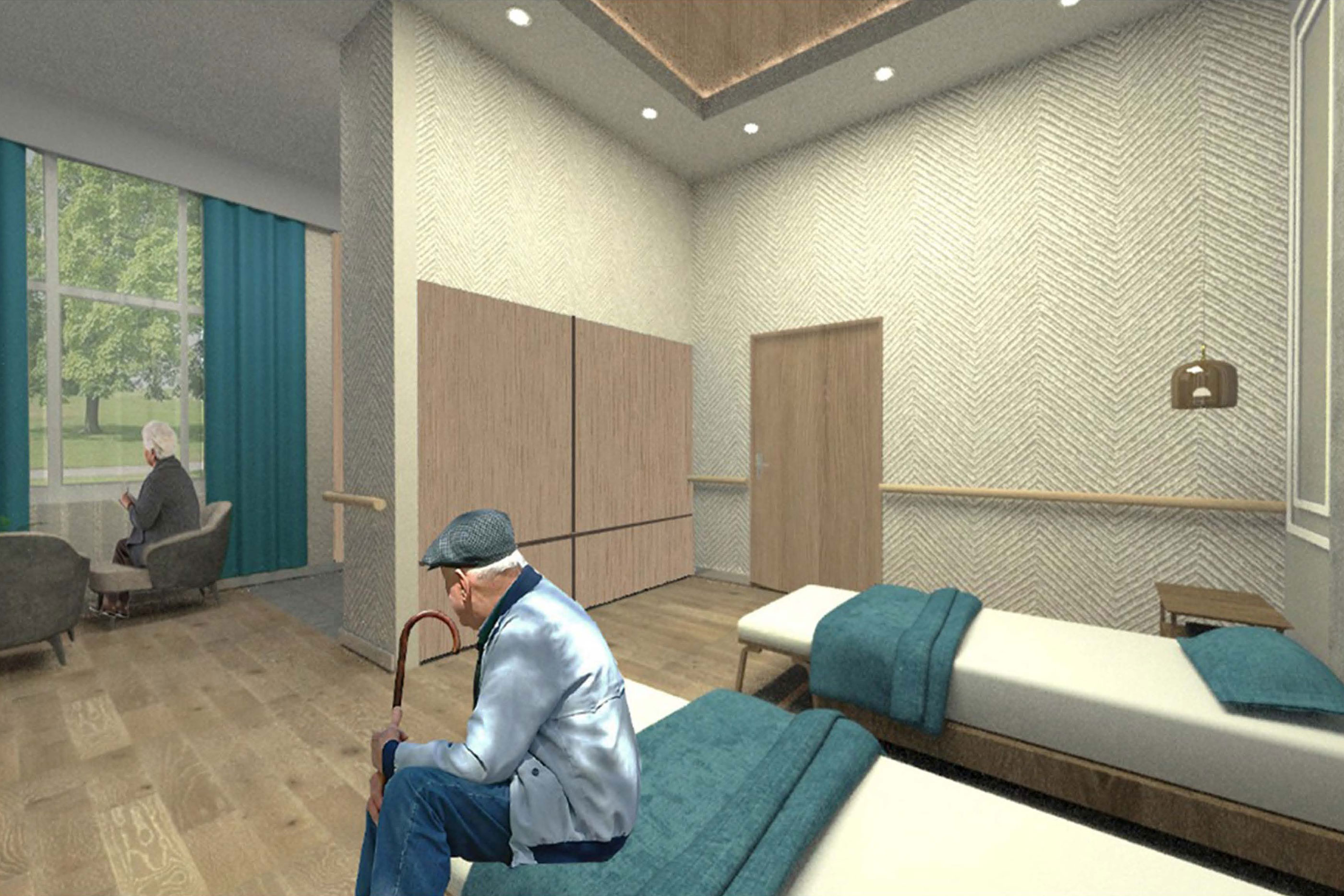

Ground floor is reserved for the accomodation purposes. The rooms' size and included equipments varies according to the user type such as one person or two, short term or long term, needing assistance or not.

3d render

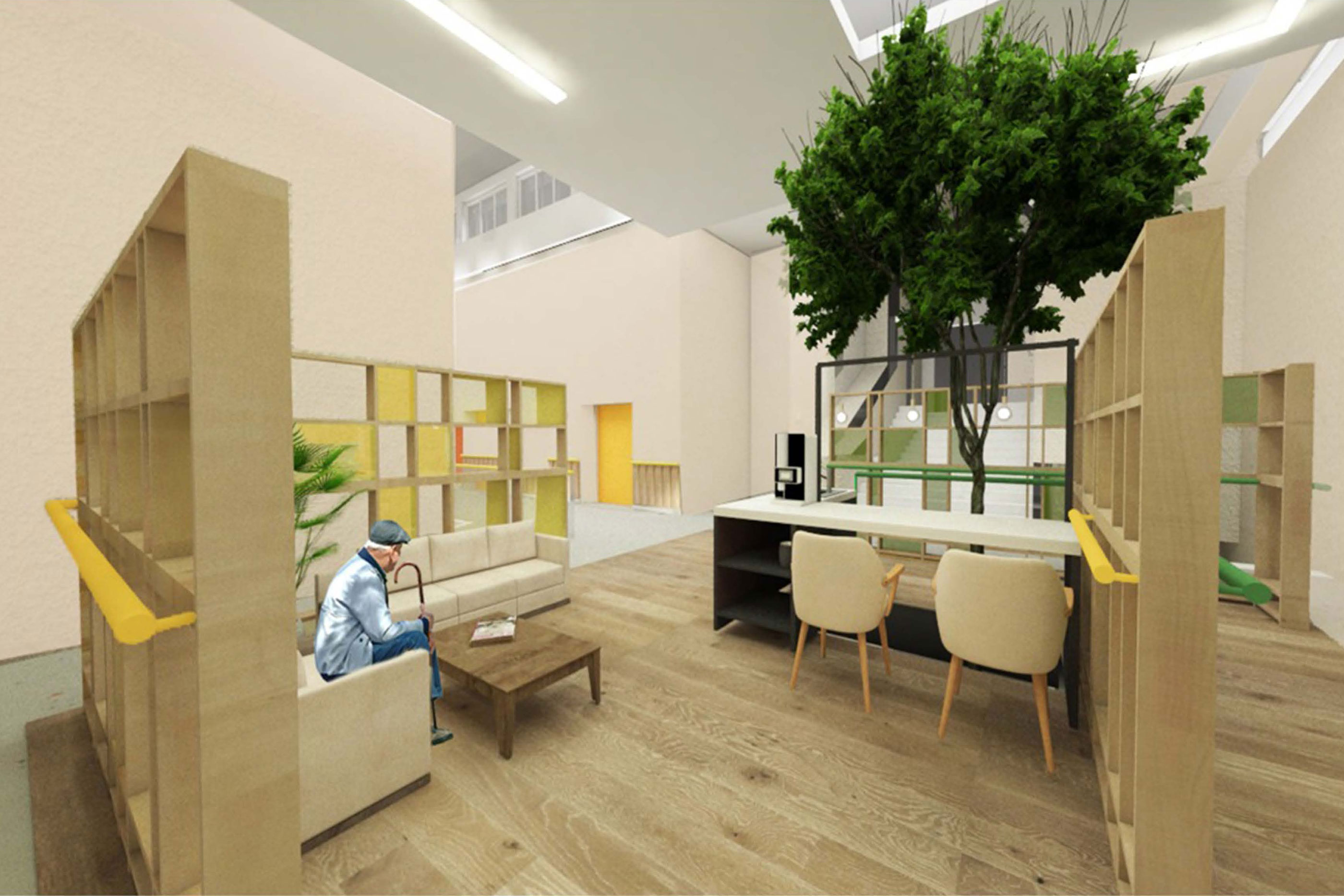

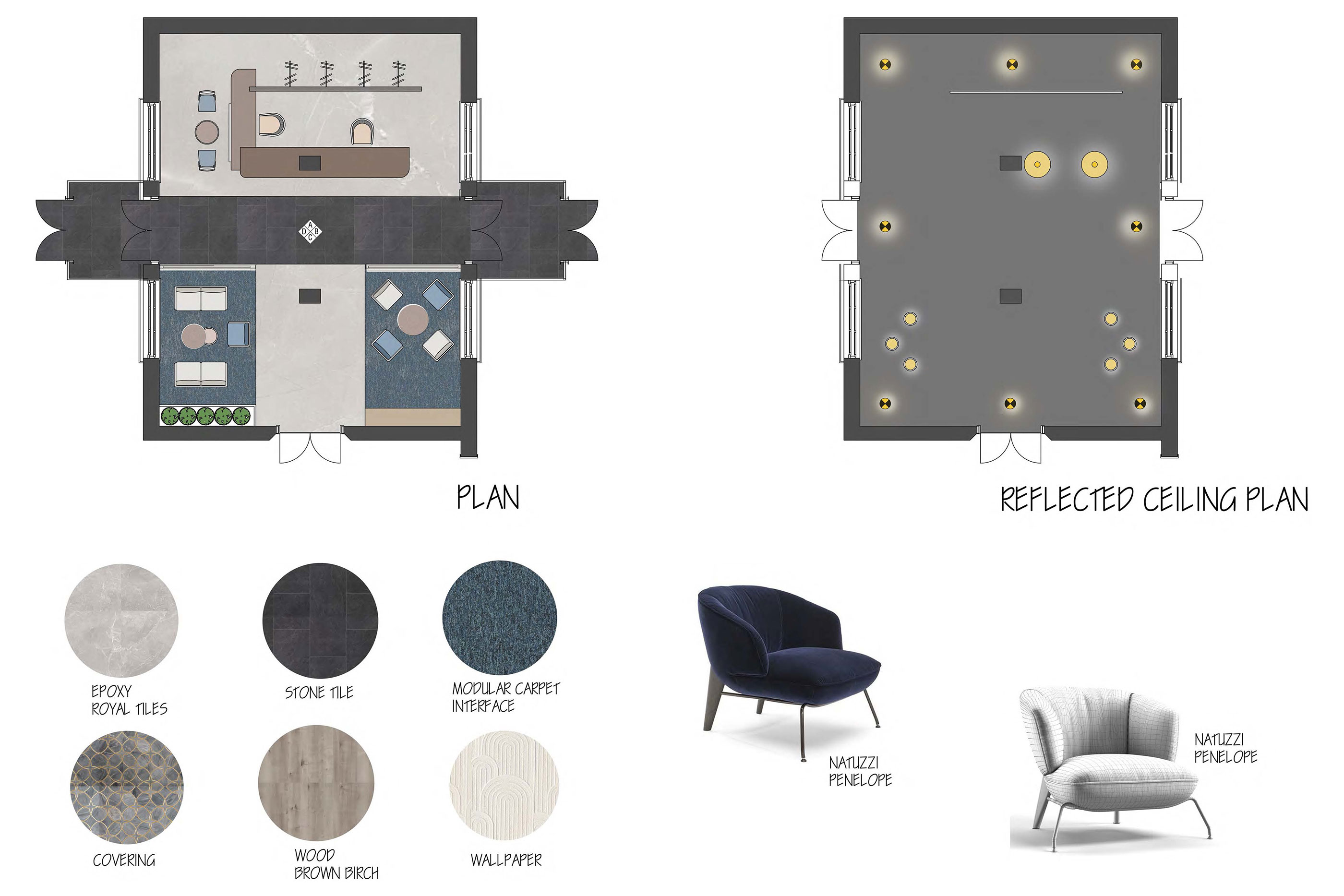

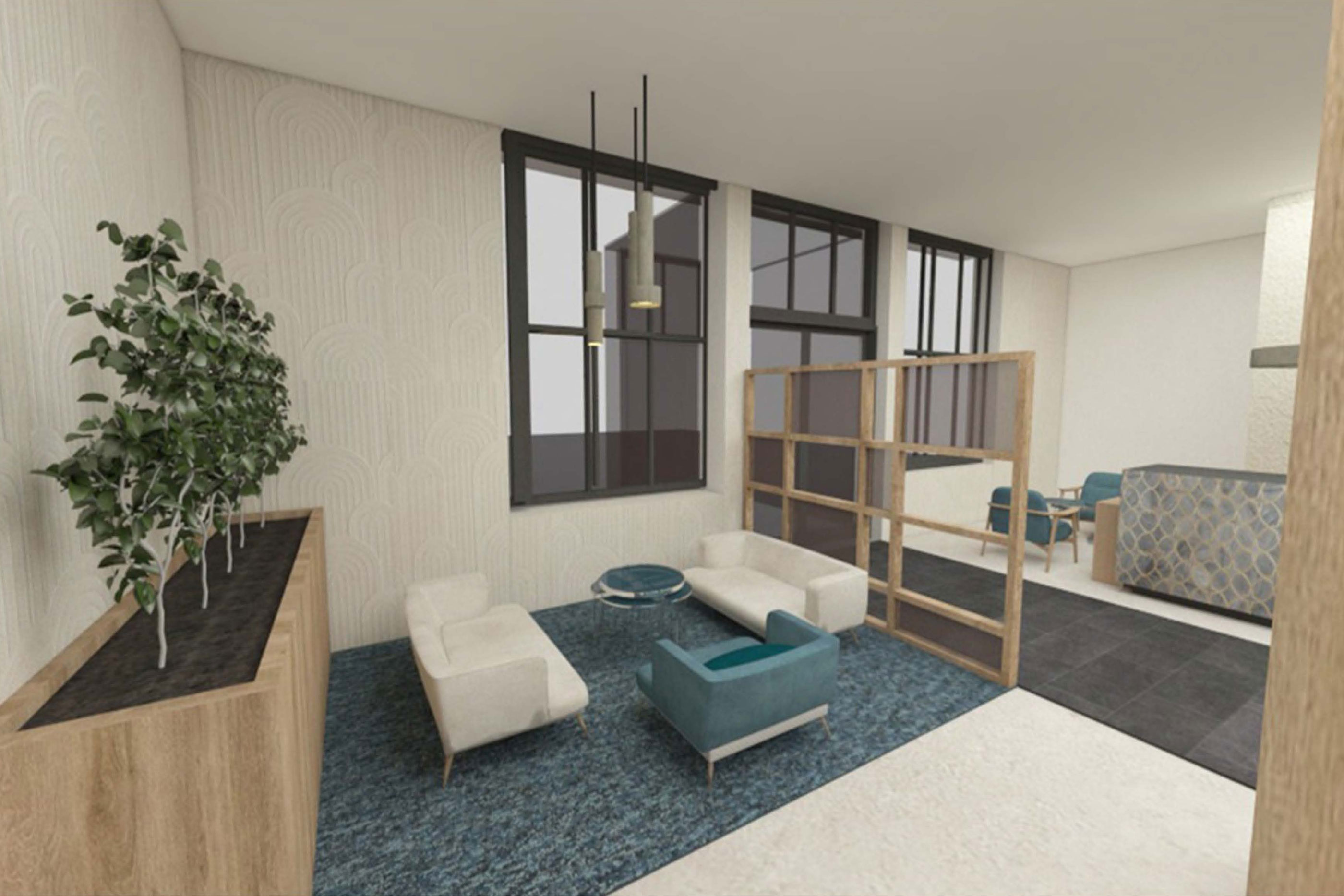

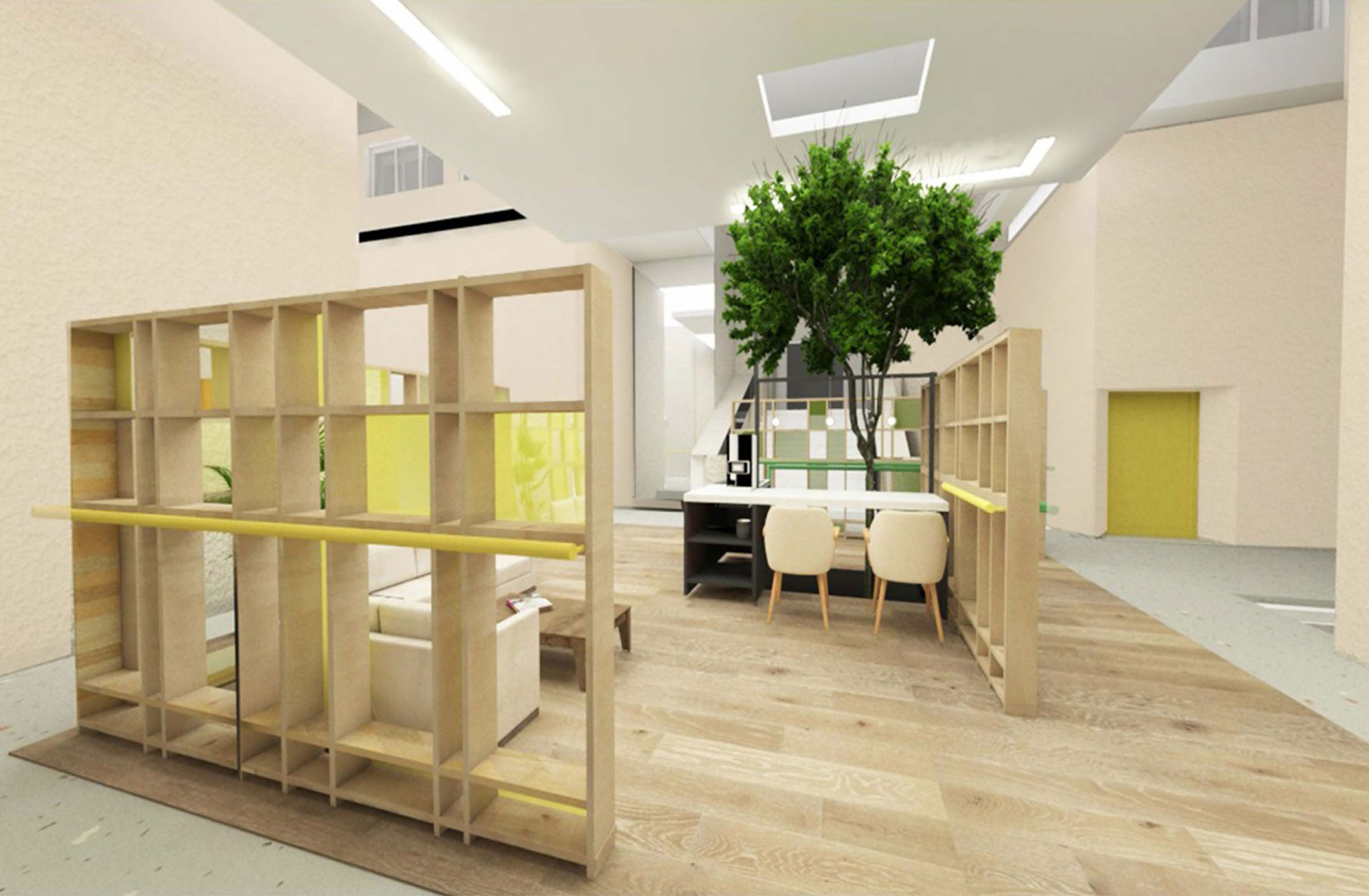

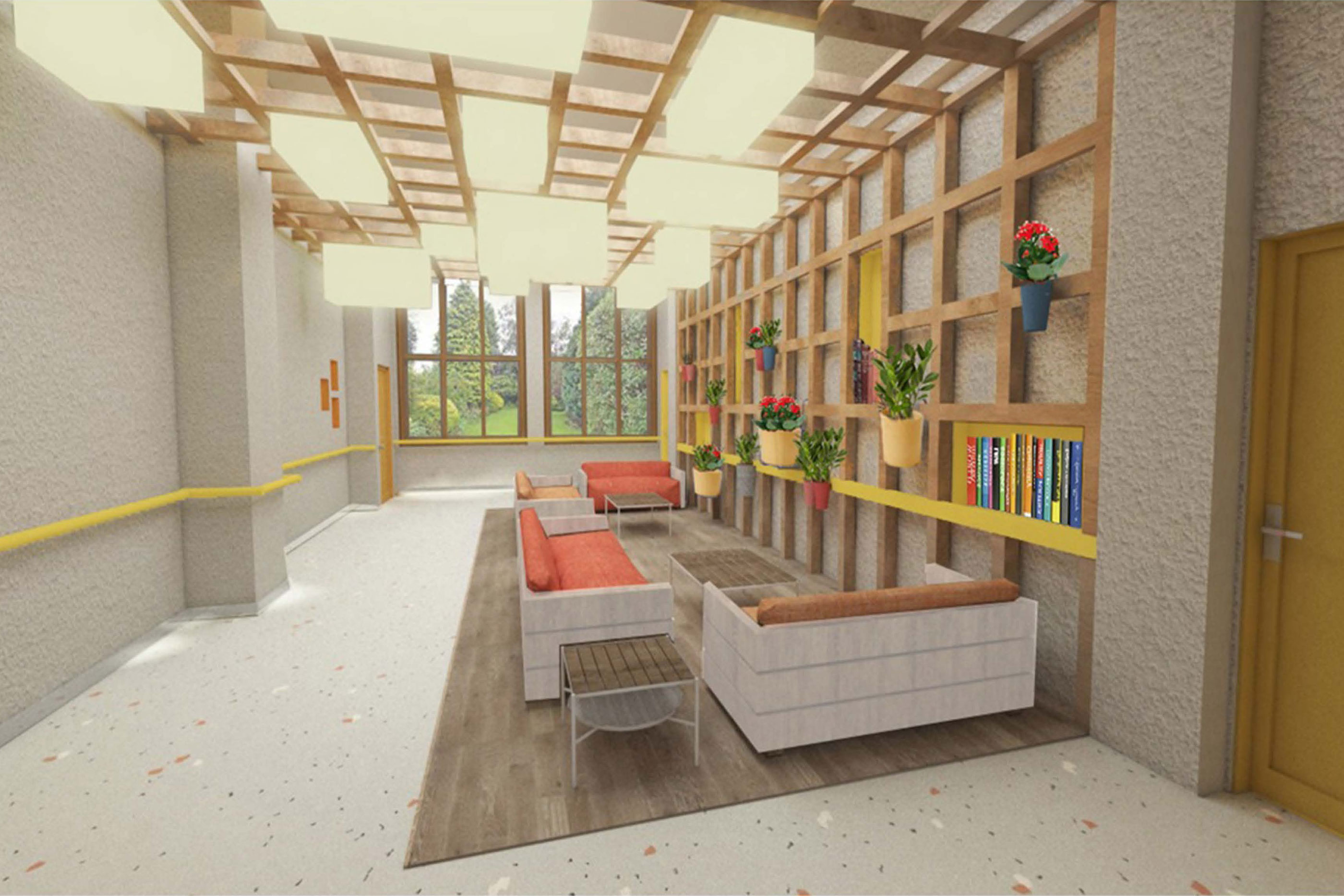

Gathering Area

At the middle, there is a gathering area created around the tree. The wings are color-coded. Left wing is emphasized with yellow color while right wing is coded with green. Also each resident's door color has the shades of the wings color

3d render

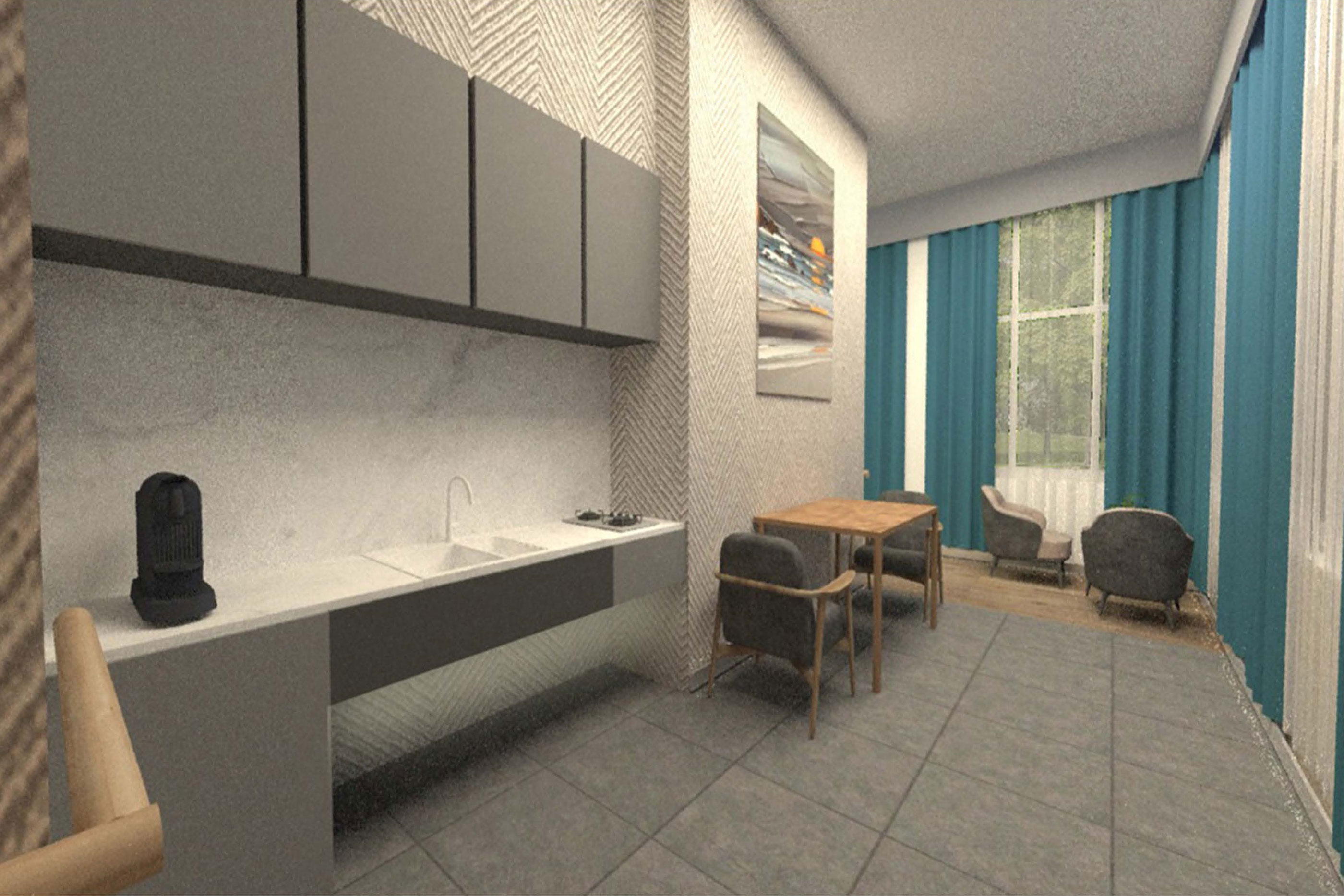

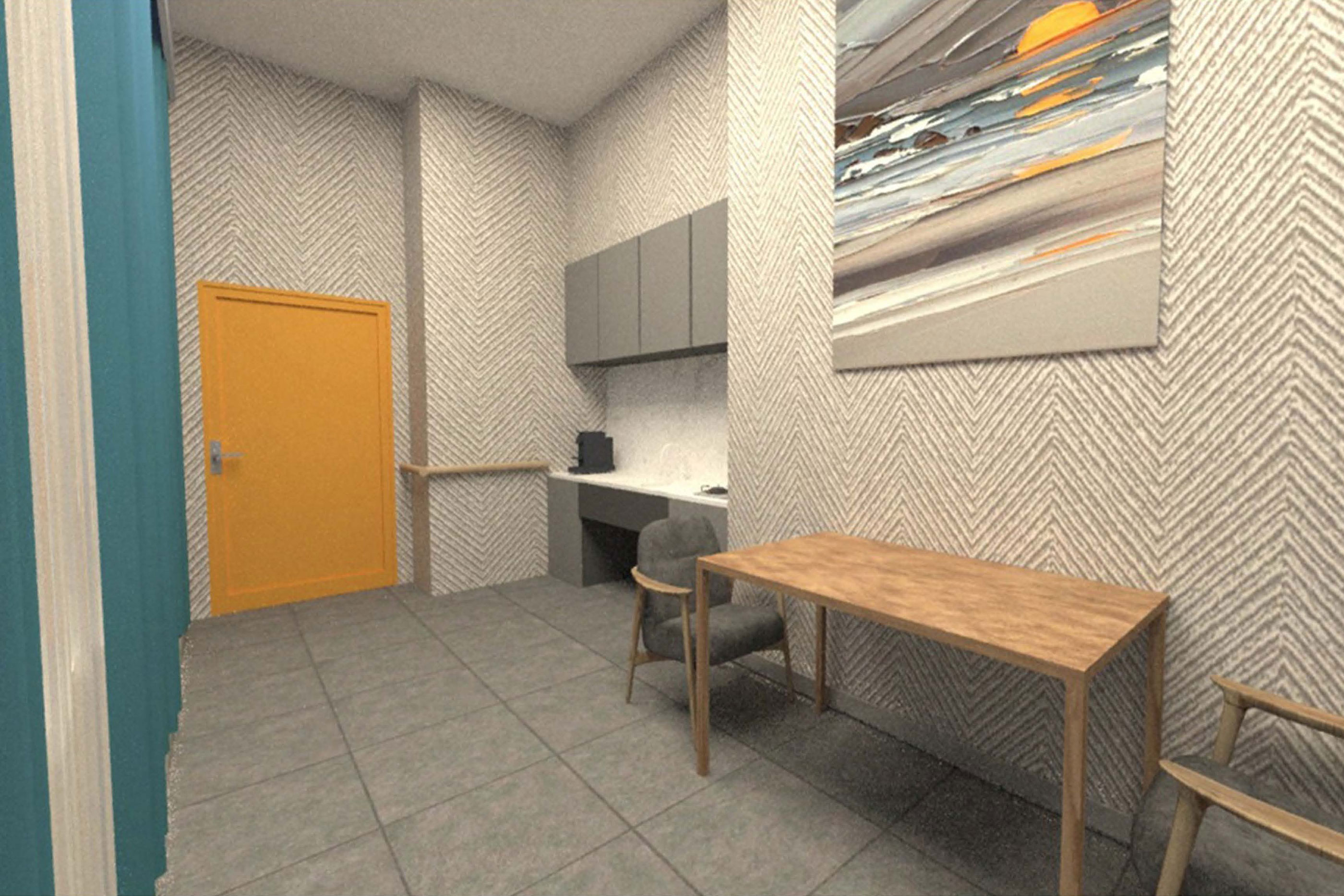

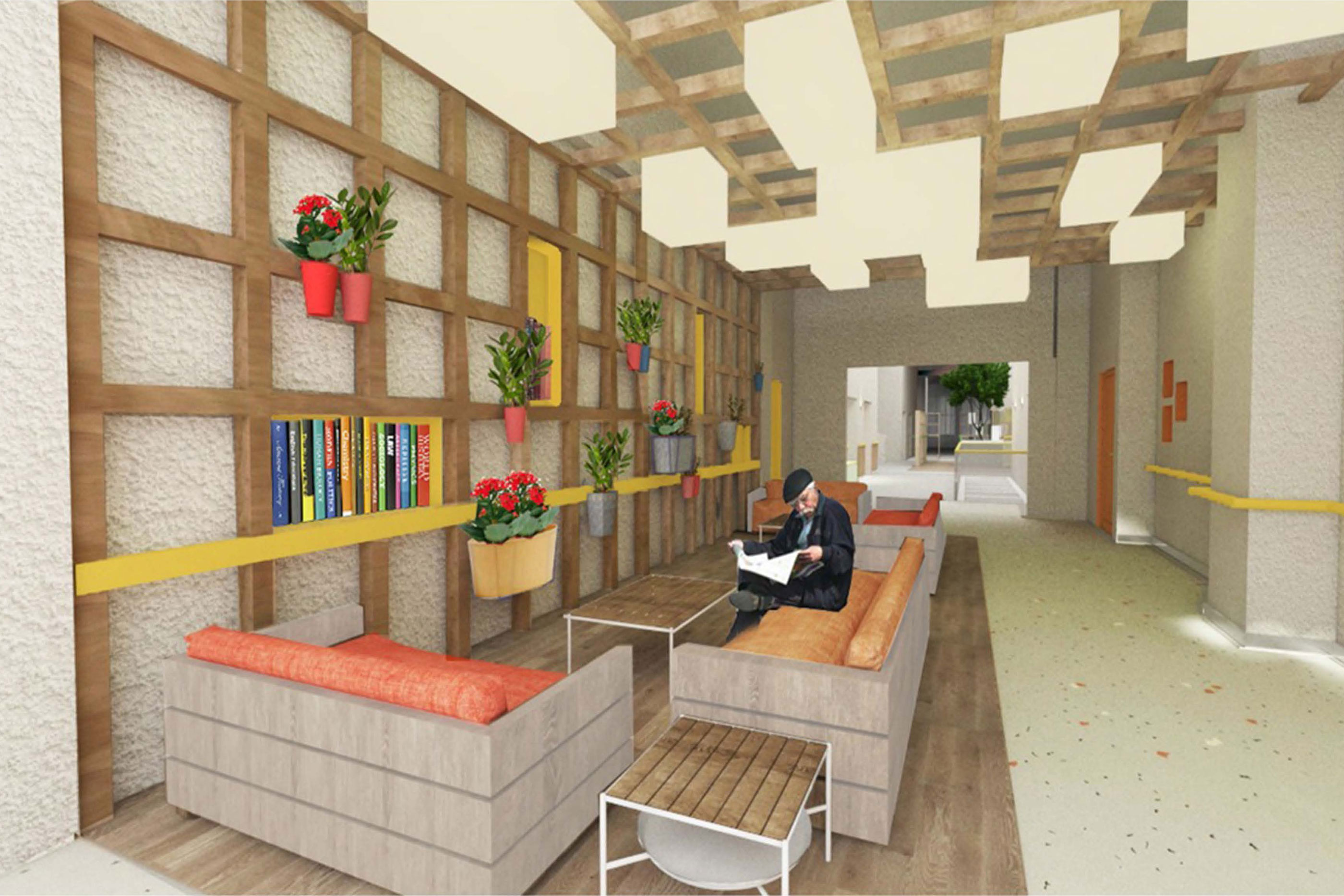

Gathering Area

People can spend time at here outside their rooms. There is also a small kitchenette for them to get some tea or coffee

3d render

Inner Patio

There is an inner patio at both wings. It is designed to create a homealike feeling, familiarity and intimacy. Patios are coded with the same color as their wing has
