Goal

Project Brief

The project was an organisation of a moving luxury accomodation on rails, travelling, living and visiting interesting historical sites, original settlements, natural beauties, etc. As a group project, we were responsible for the design of a typical wagon as a suit for the accomodation of a family with four people or four friends. Inside the train wagon, accomodation will be provided by area for sleeping, living, dining, bathroom, a small kitchenette and toilette room. According to the scenario the train have a route from İzmir Alsancak to Selçuk, Aydın, Denizli, consisting of at least three train stops, stations.
The project includes to design a train station as a prototype.
Fall 2020-2021, Group Project

02
Presentation

Visual Gallery

All Categories Conceptual Studies Technical Drawings 3D Renders
conceptual study
project

Project Cover


conceptual study
project

Research

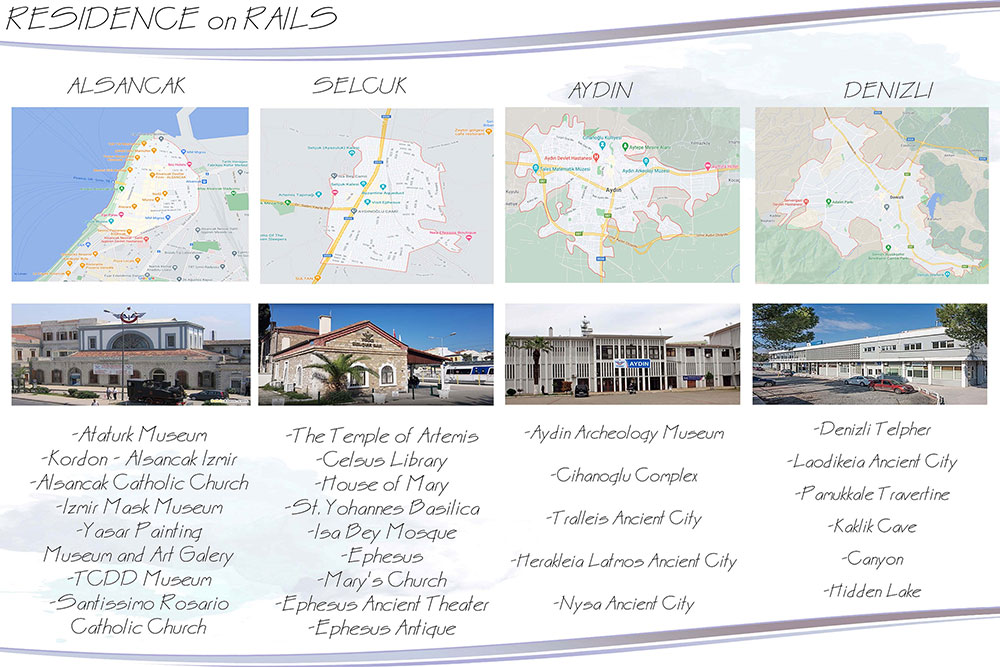

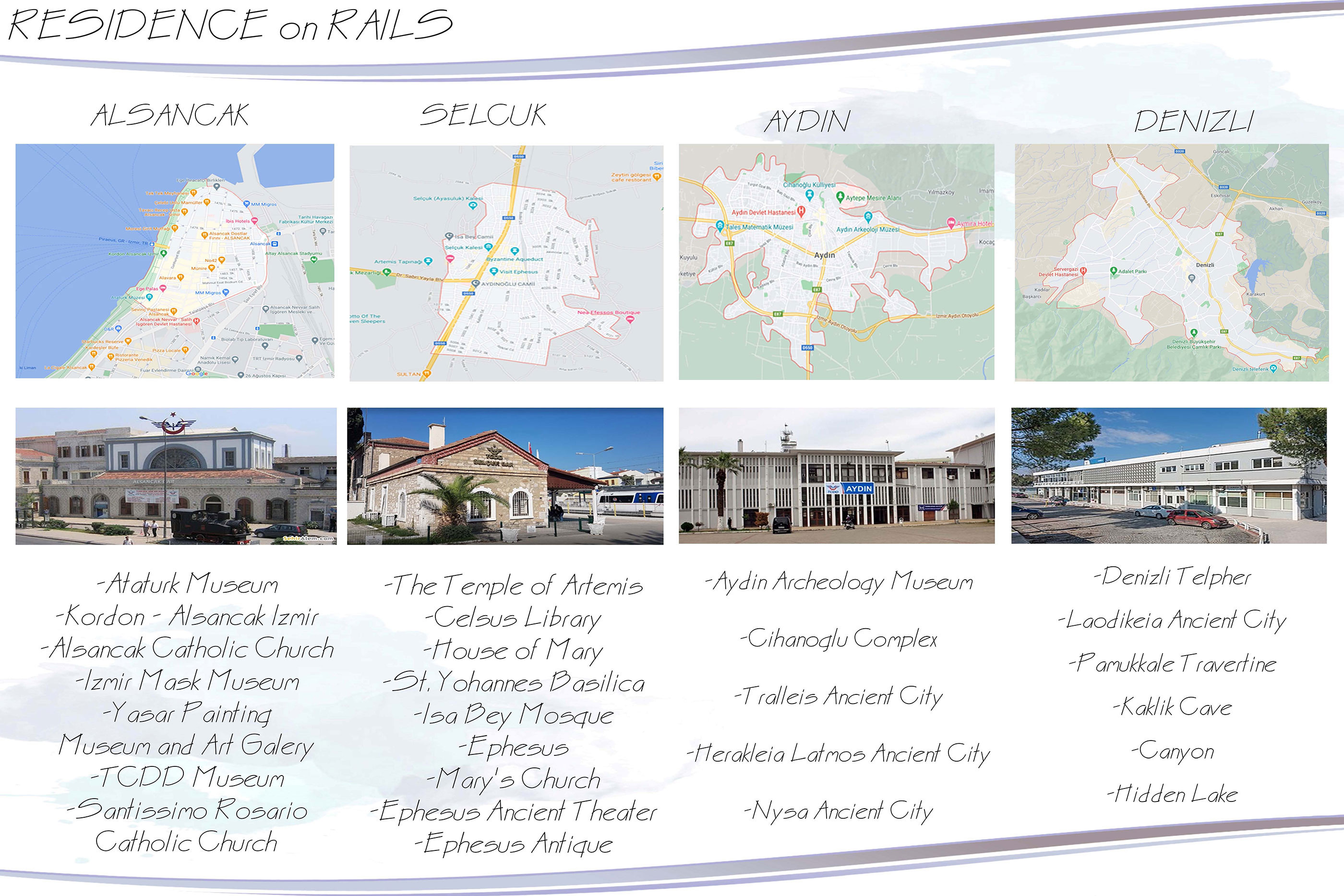

Historical places to visit for each train stop
conceptual study
project

Concept

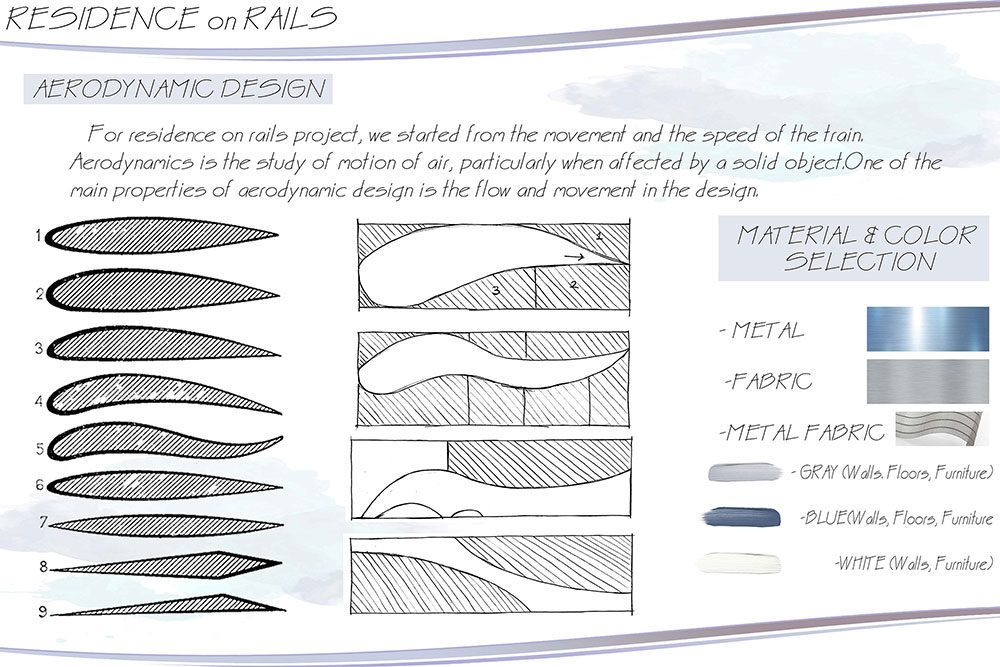

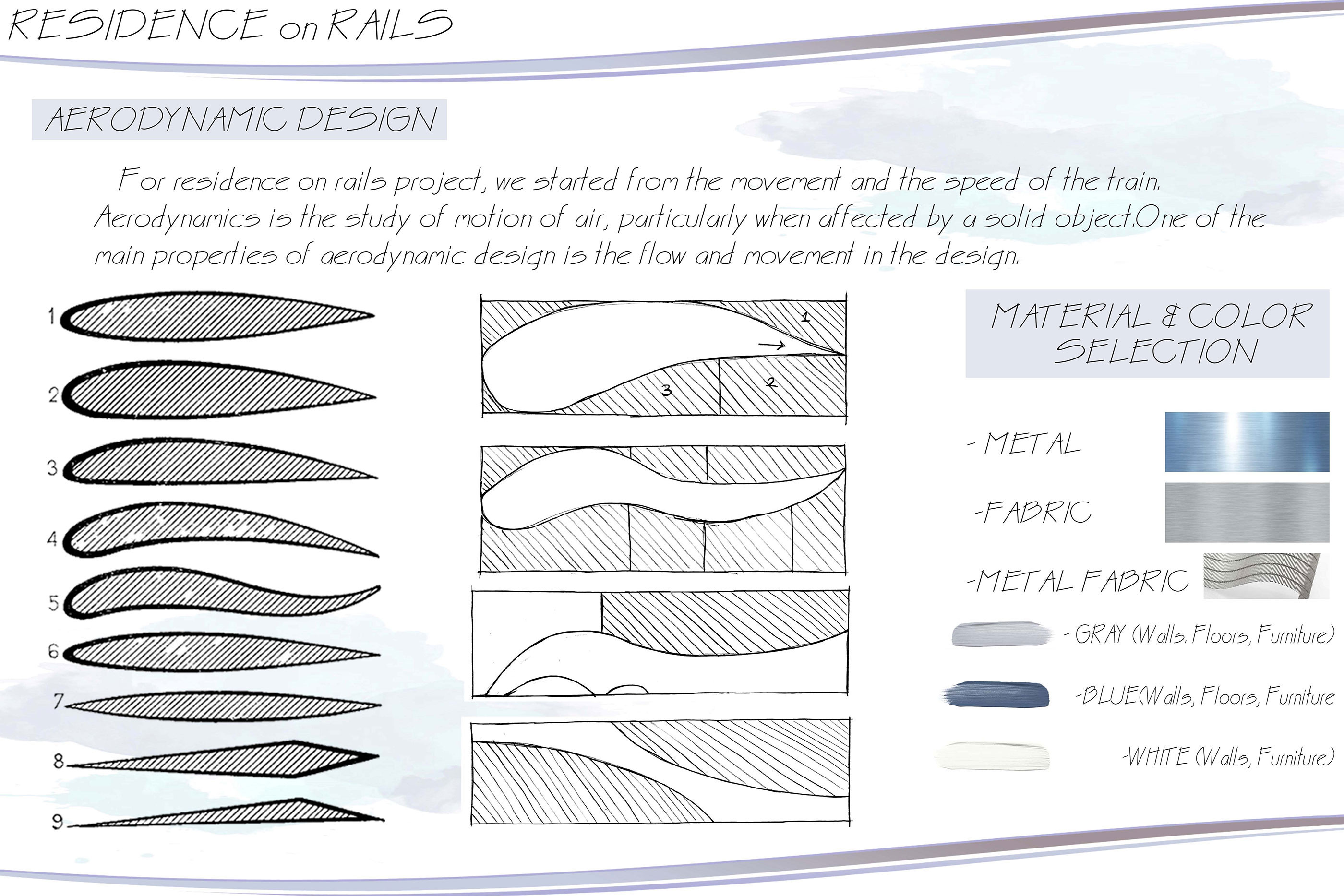

Desing idea, material and color selections
conceptual study
project

Train Route

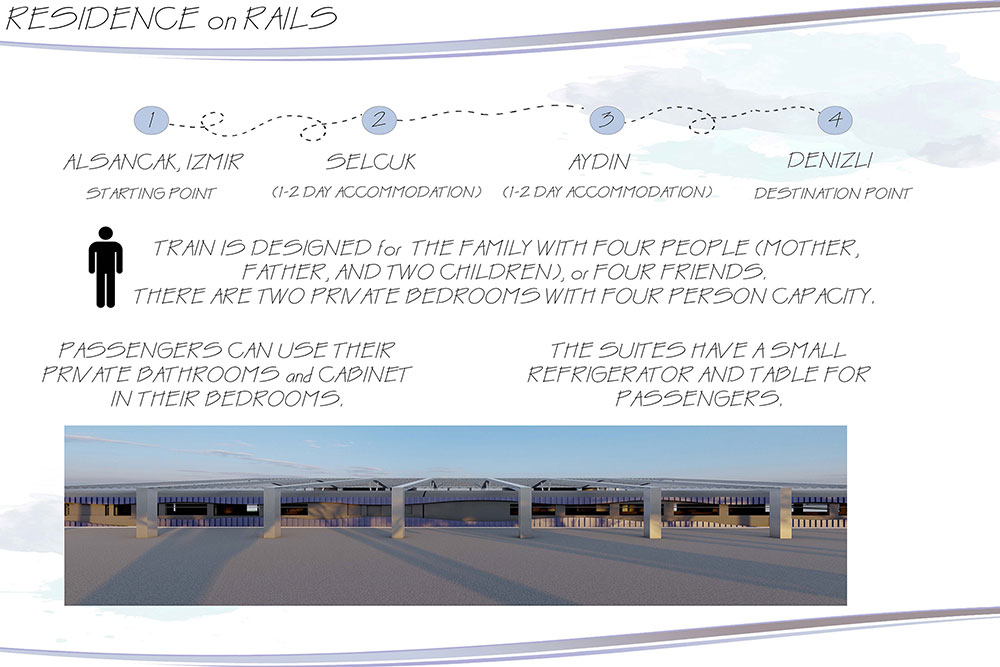

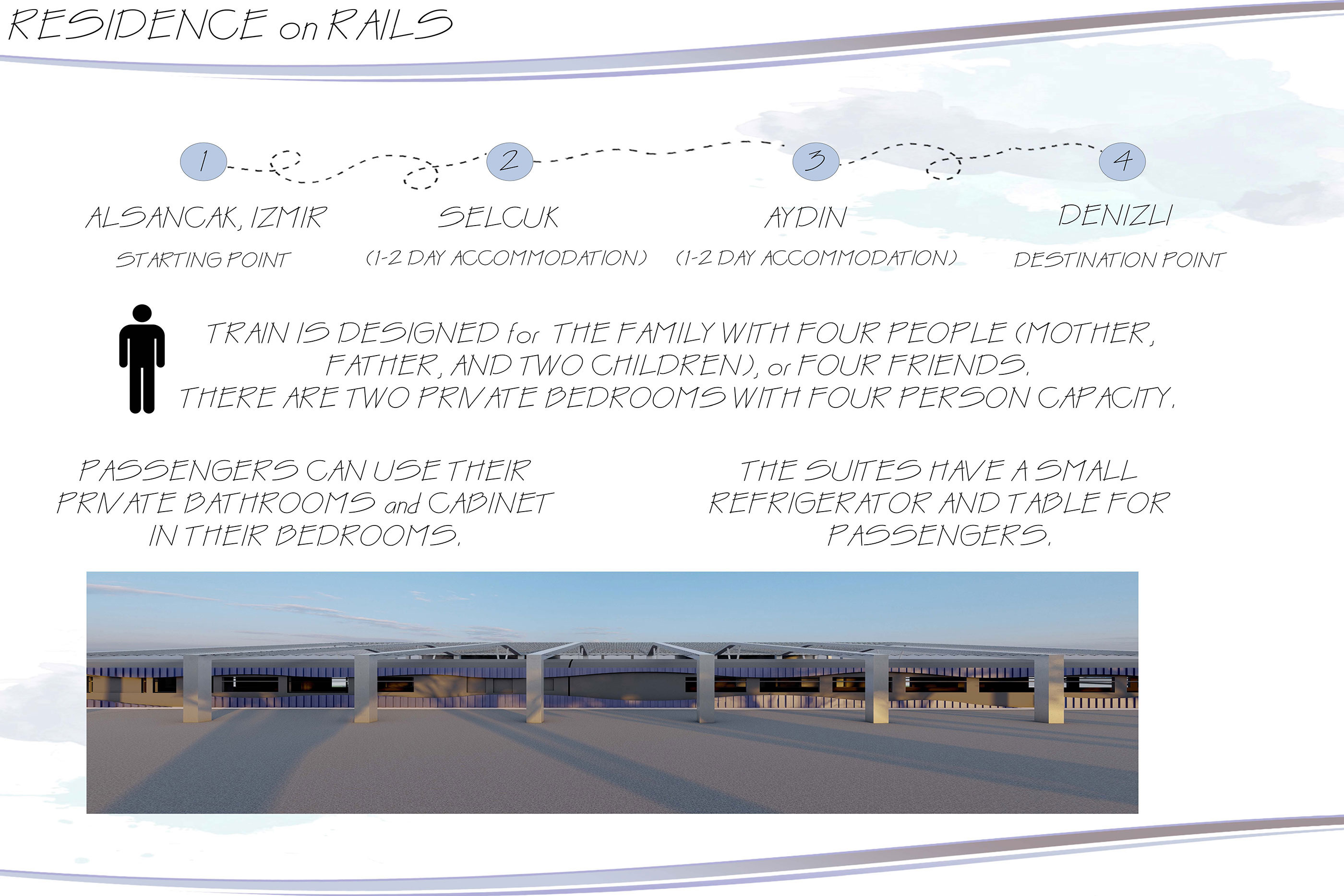

Scenario
conceptual study
project

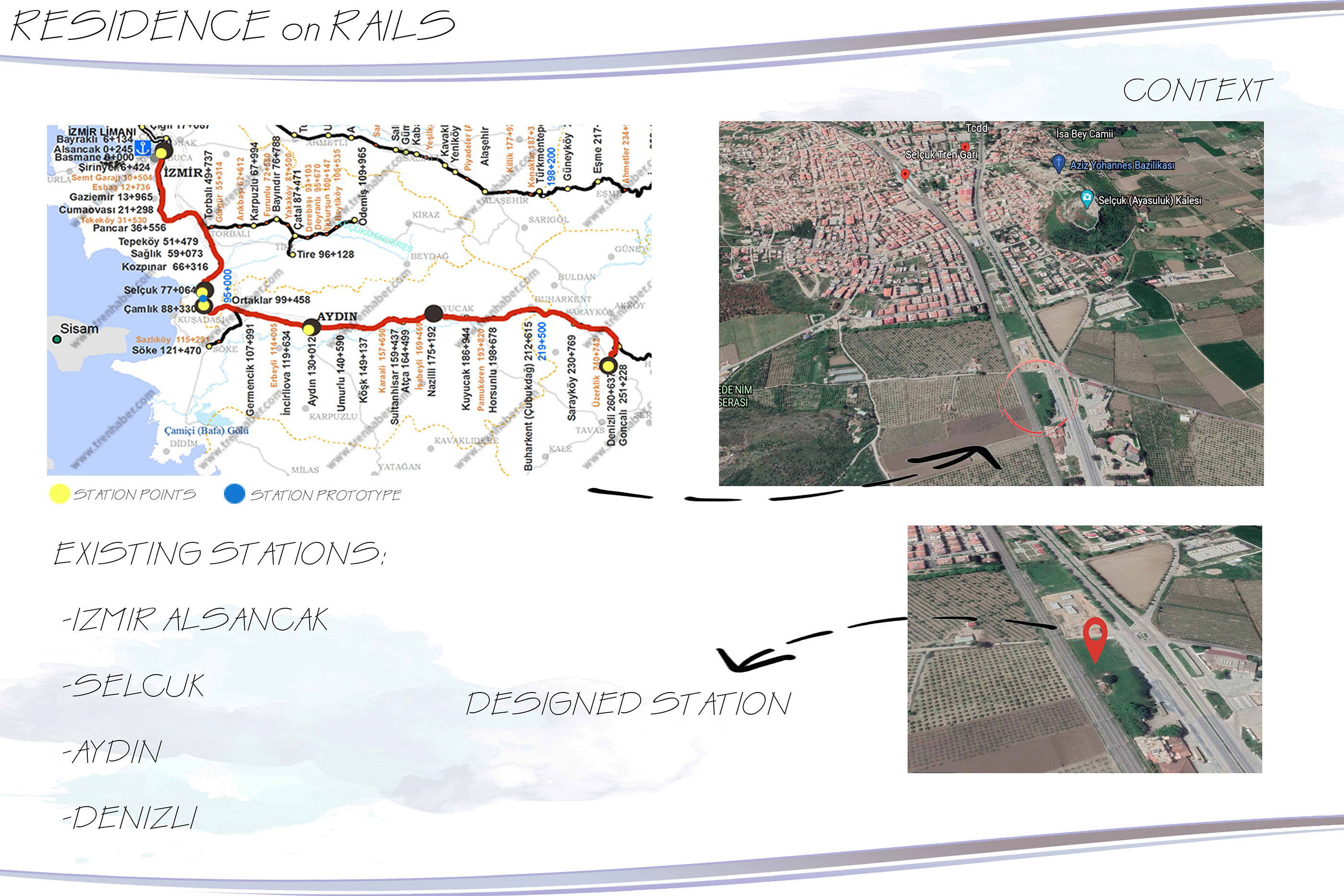

Designed Station Point

Selected station and its location
technical drawing
project

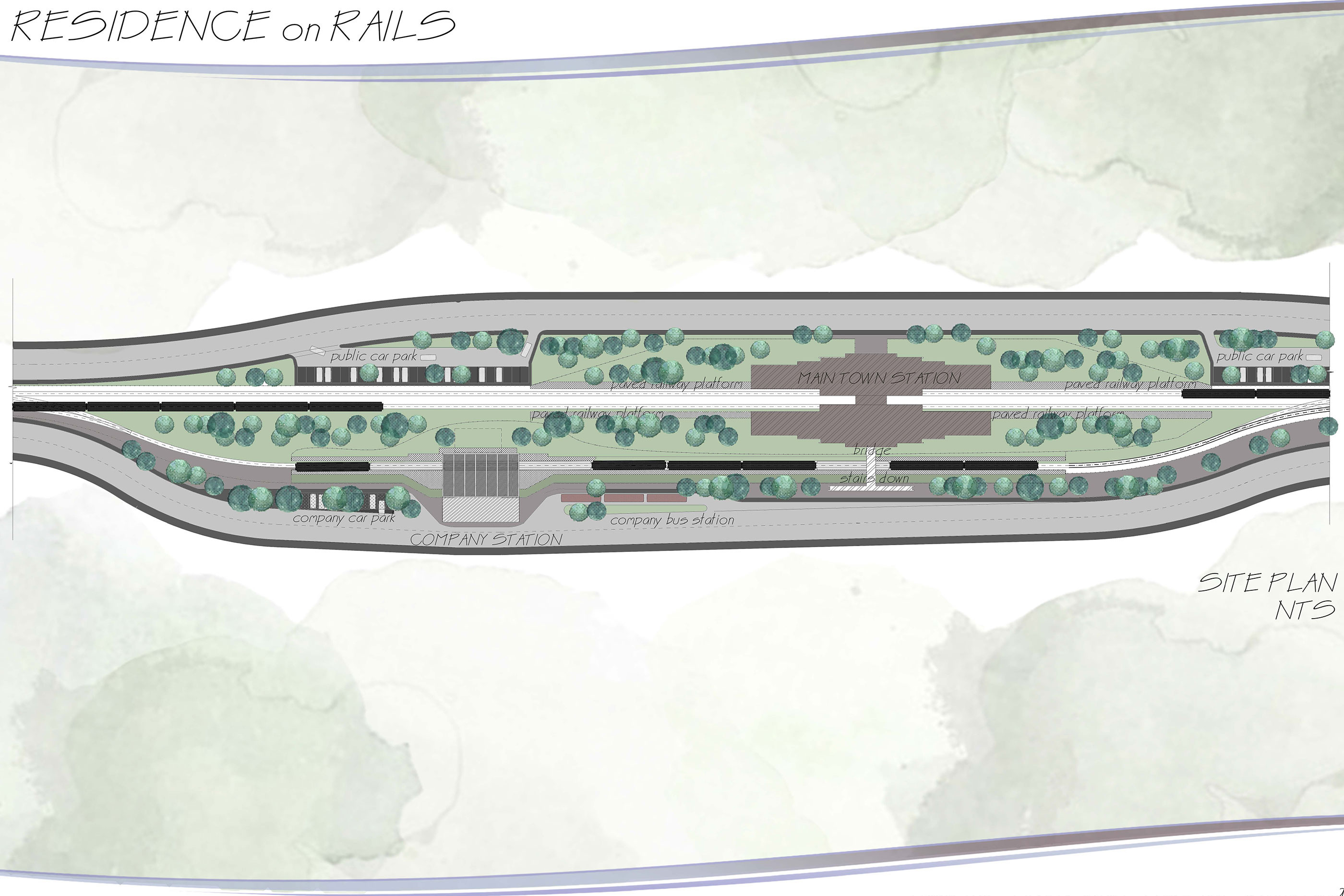

Site Plan

Showing close environment
technical drawing
project

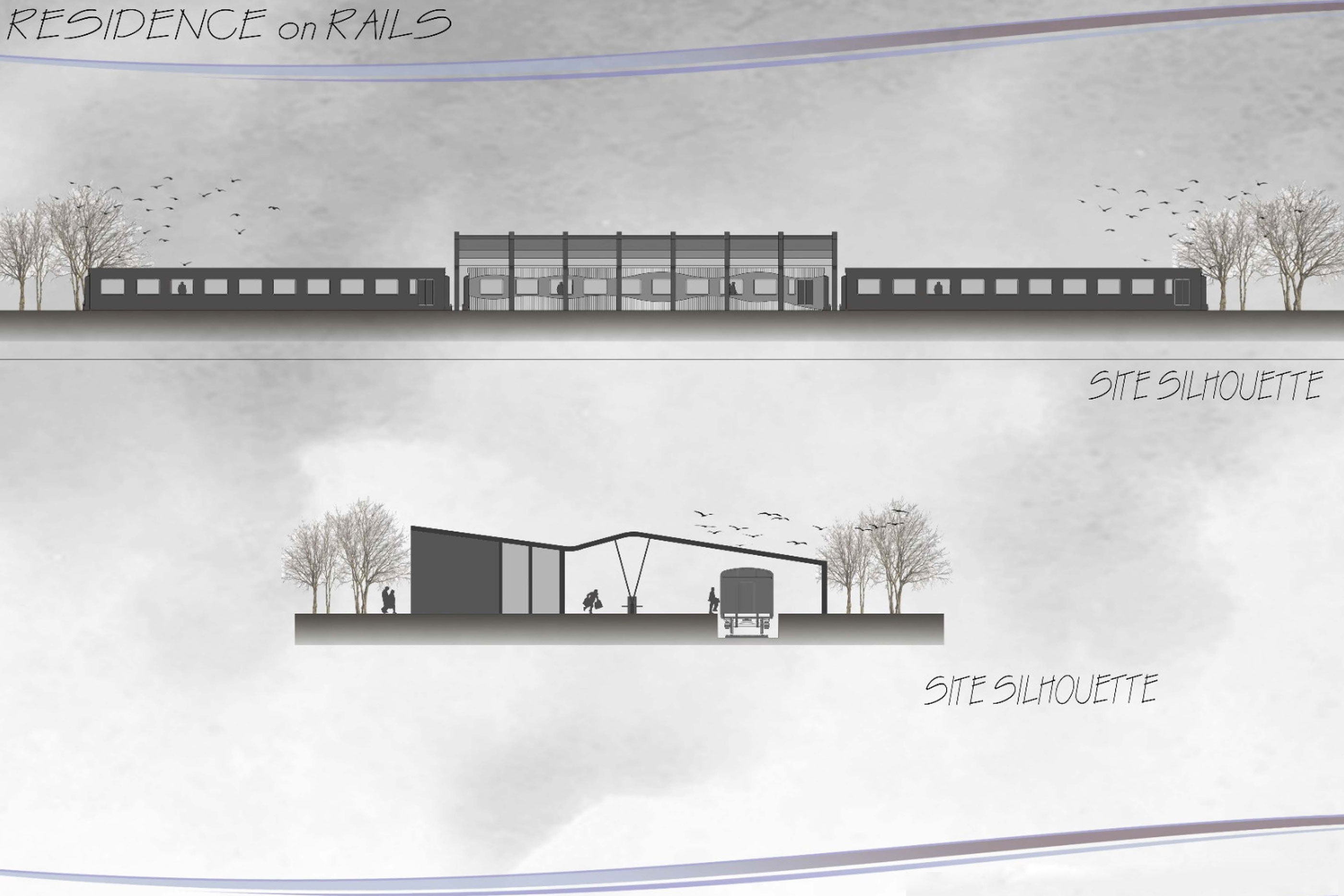

Site Silhouette

Train and the station

technical drawing
project

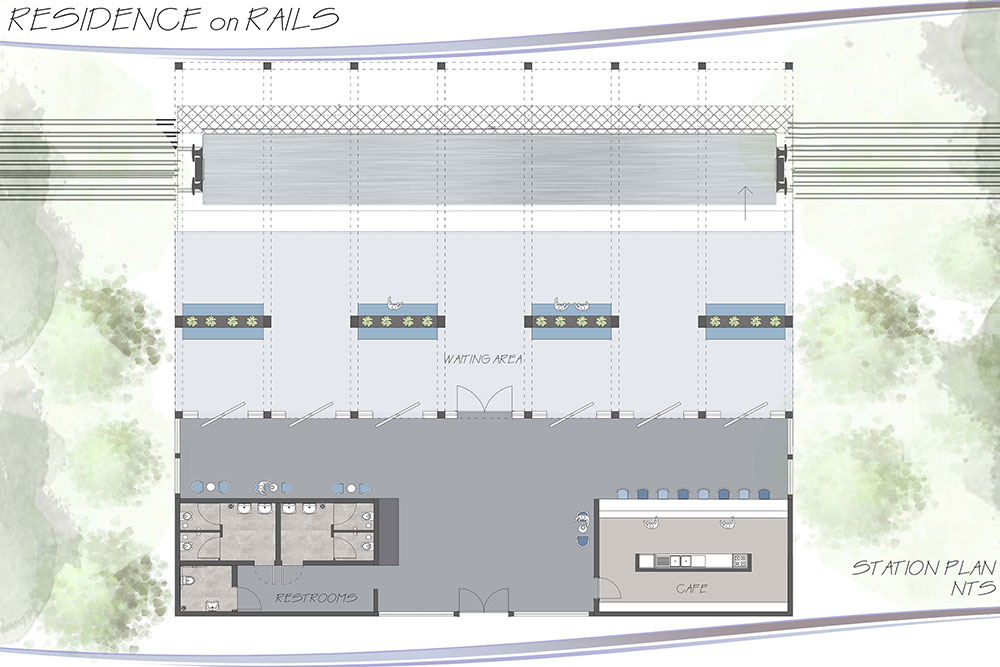

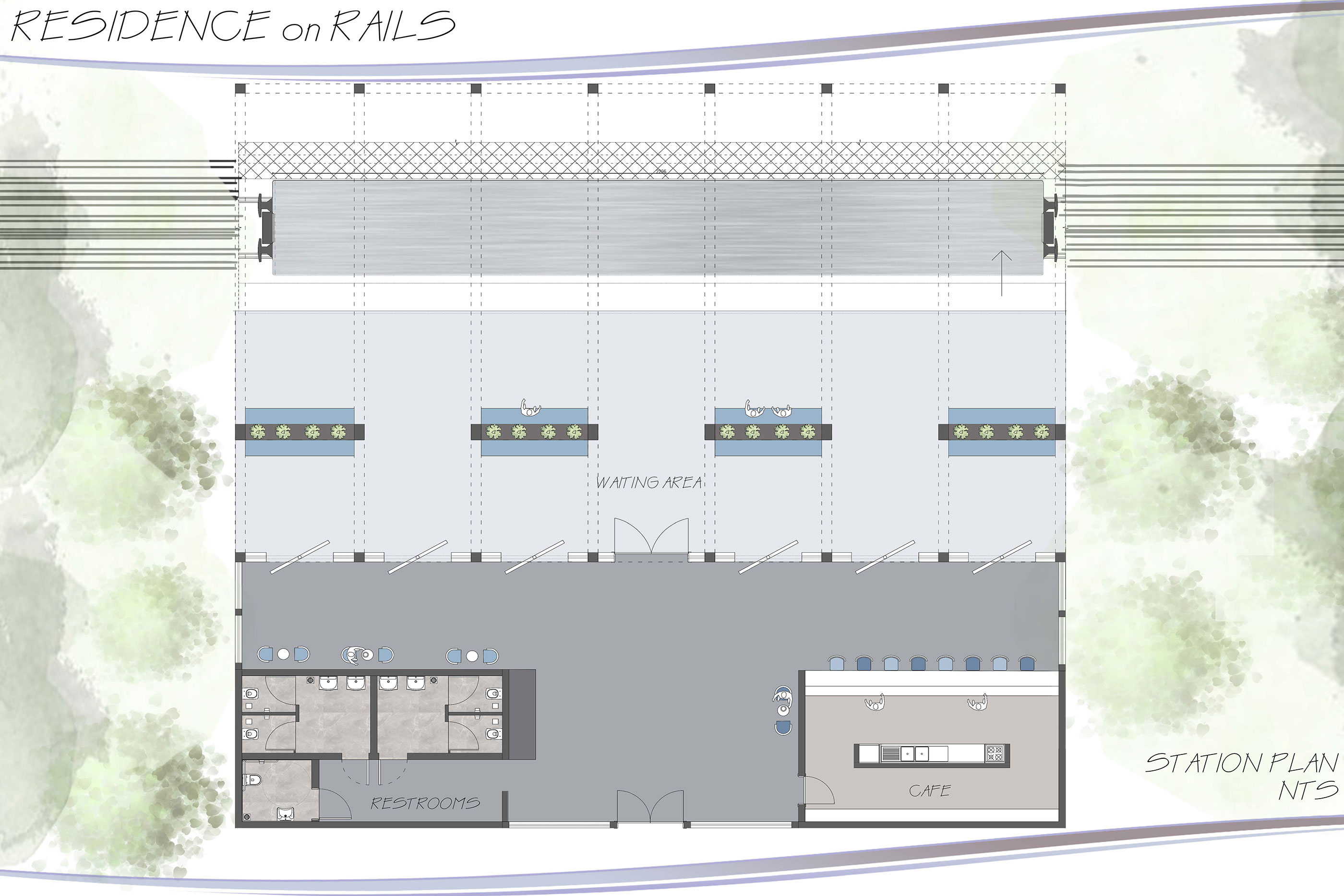

Station Plan

Not to Scale

3d render
project

Perspective

Our designed station is located ahead of Selçuklu train station
3d render
project

Perspective

The station has bus and car park points


3d render
project

Perspective

There are both inside and outside parts for the waiting

3d render
project

Perspective

Its structure is skeleton system. Metal mesh is preferred at the top part in order to enhance the idea of aerodinamic design concept
3d render
project

Perspective

Inside of the station, there is cafe, restrooms, waiting hall and ATM machines
3d render
project

Perspective

Ending point of the station

3d render
project

Perspective

View from outside

technical drawing
project

Plan/Section

Curvelinear forms are preferred in the layout plan. Idea was to create a futuristic aura and flowness
technical drawing
project

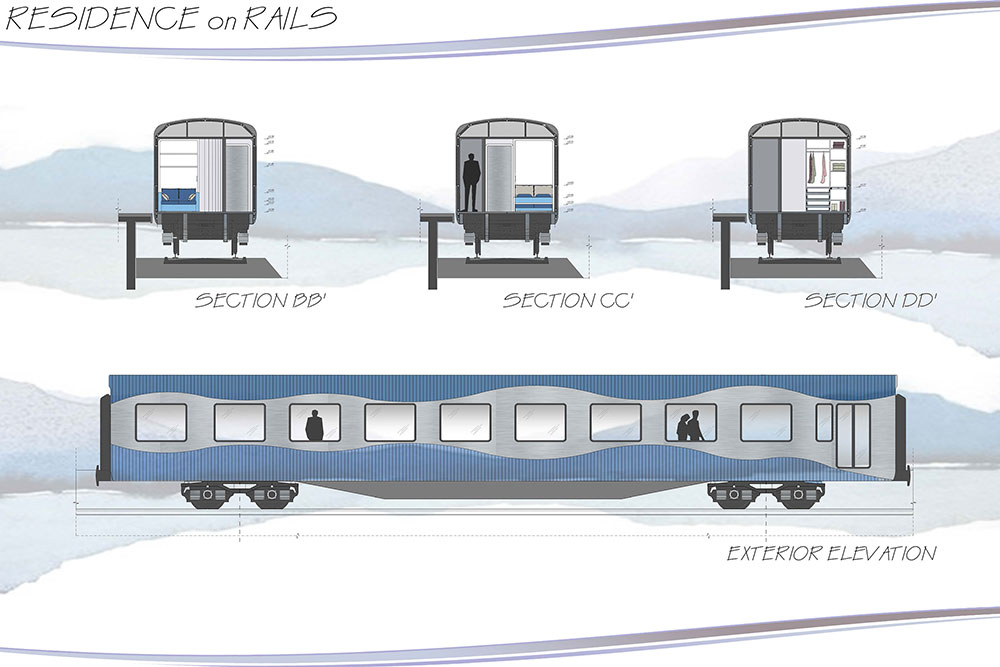

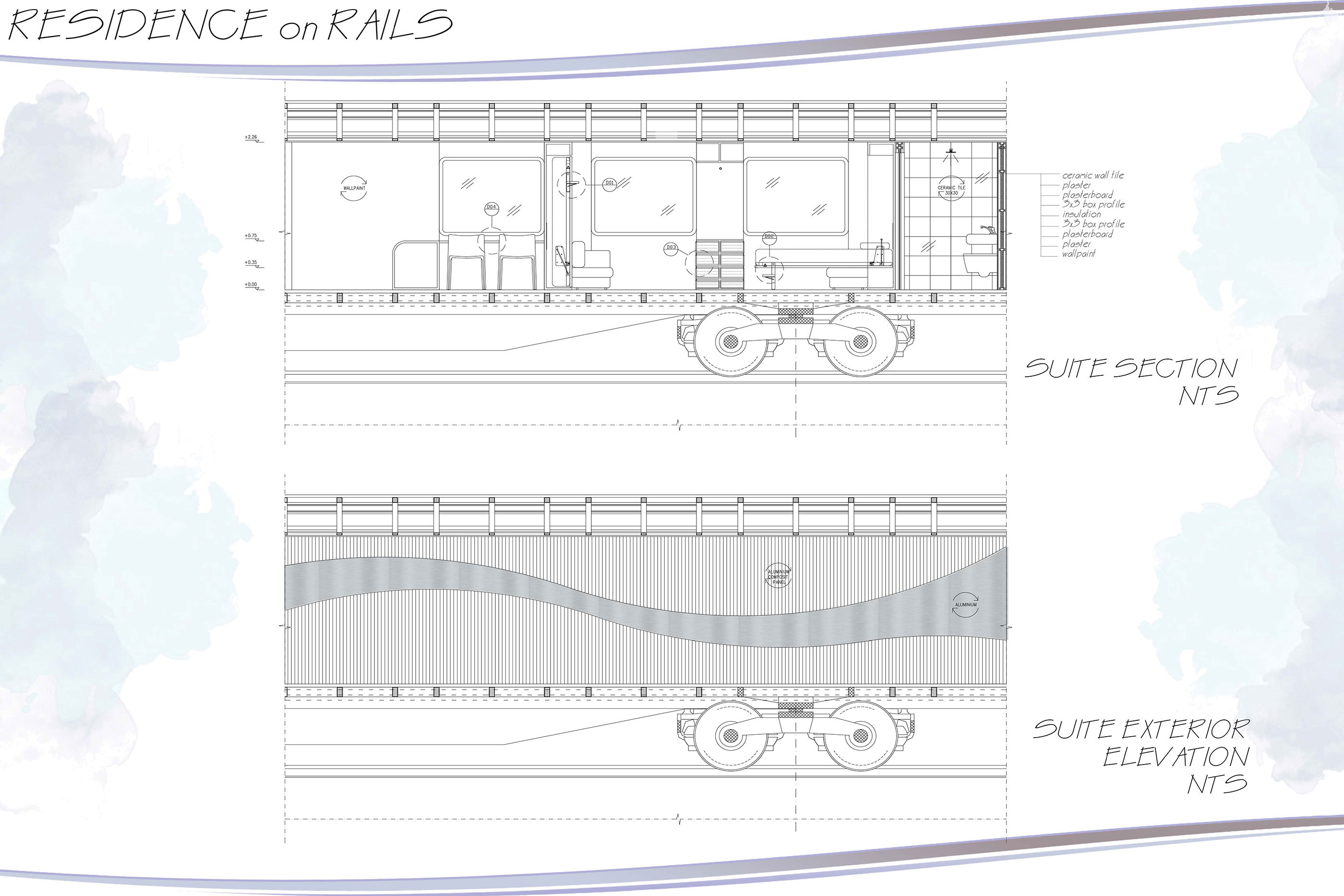

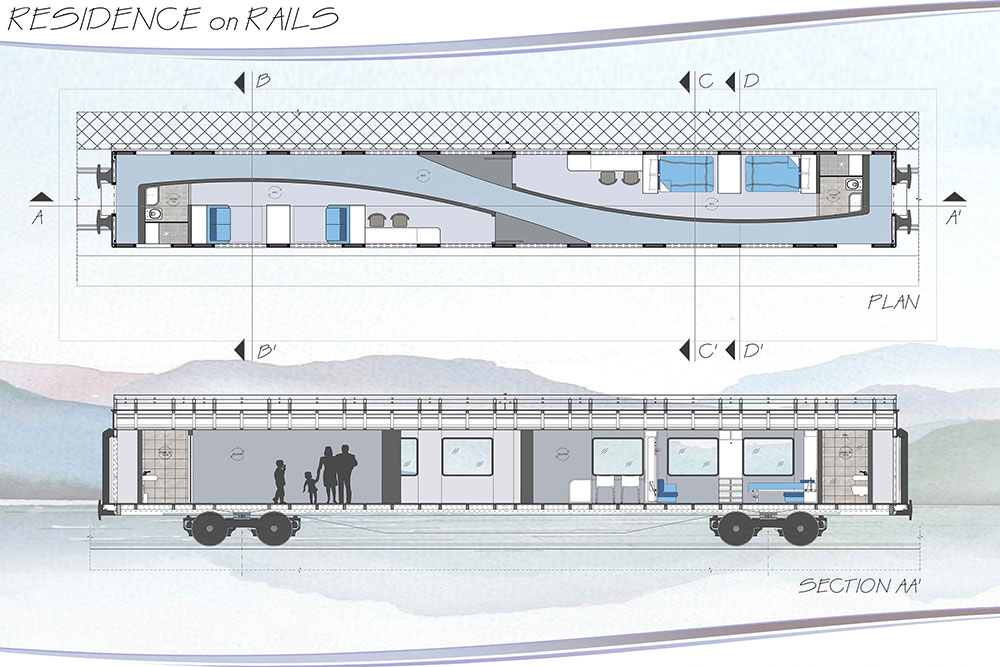

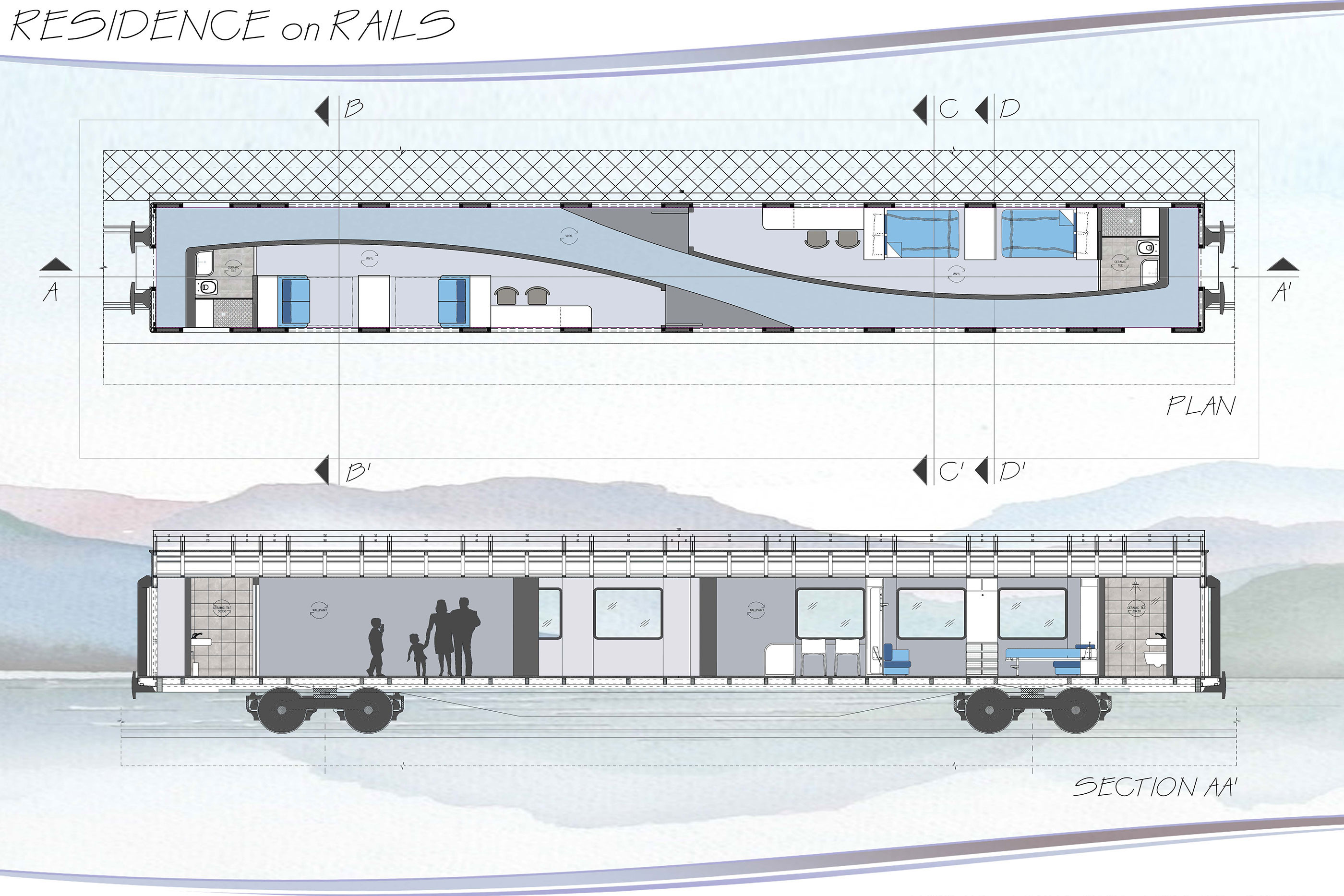

Section/Elevation

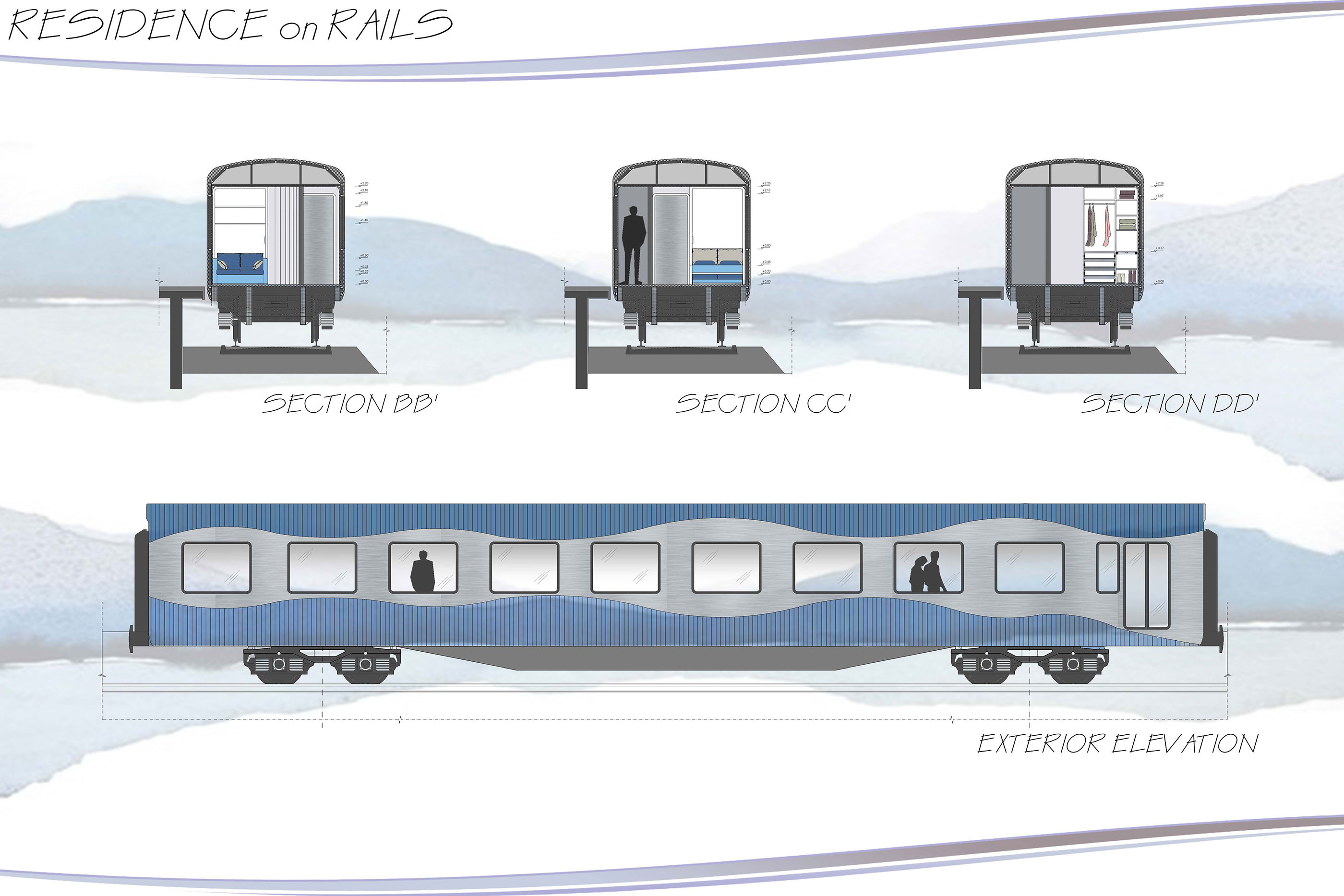

The facade of the train is covered with aluminium material in grey and blue colors. It follows the same language with the interior walls
3d render
project

Perspective

Corridor view in daylight


3d render
project

Perspective

Corridor view at night time




3d render
project

Perspective

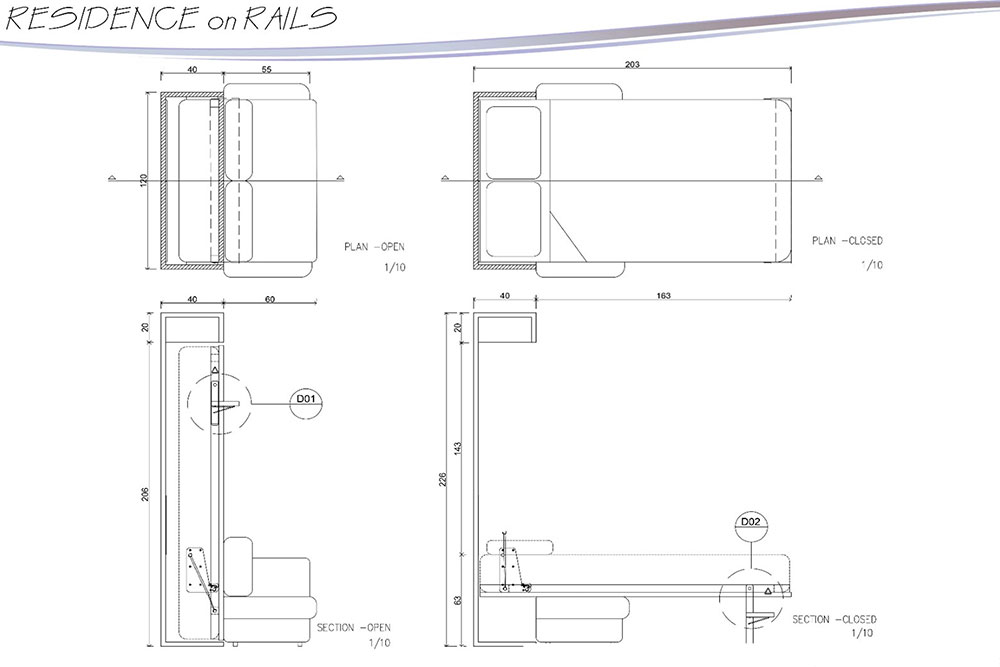

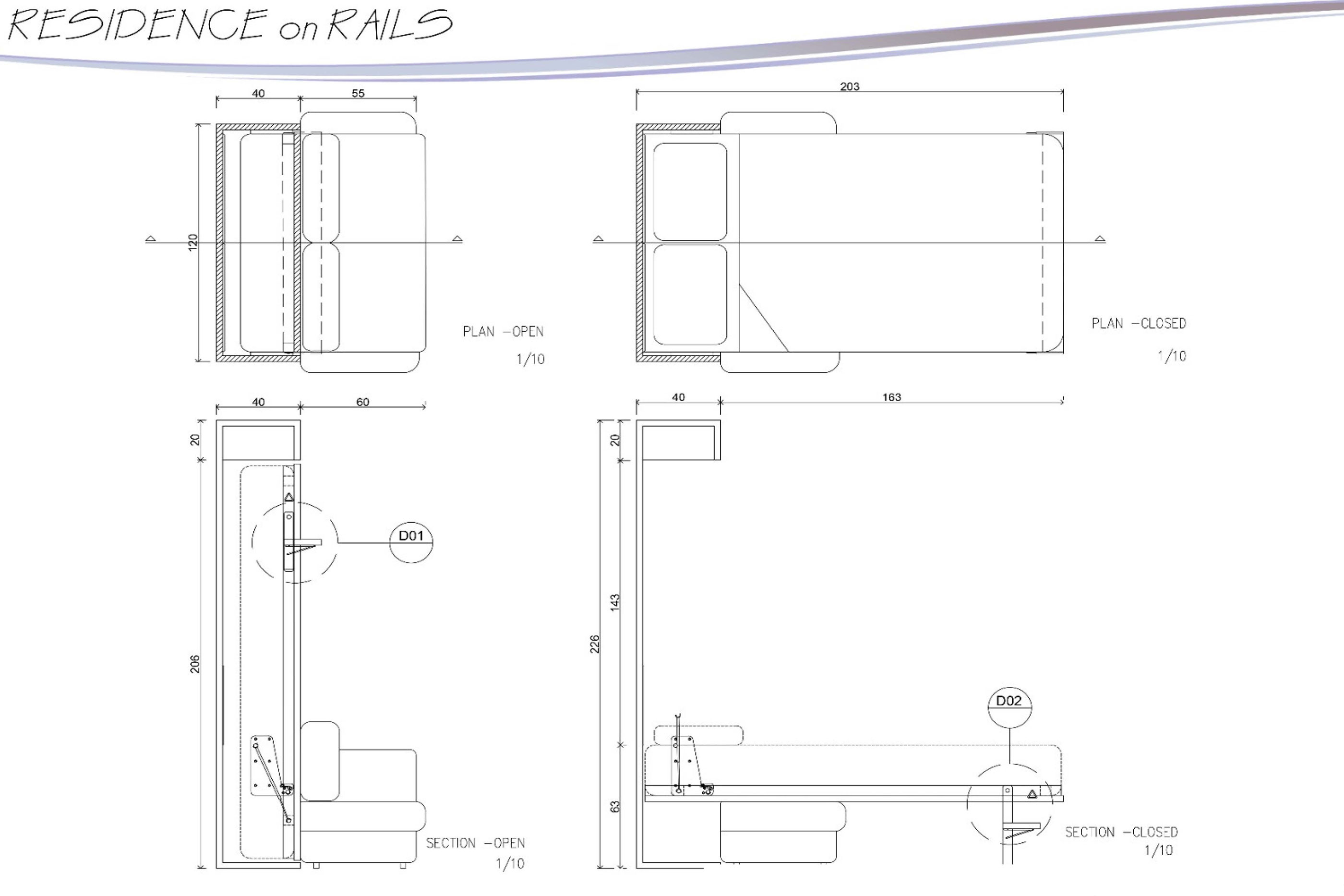

In order to gain space for day and night activites, murphy bed was designed to meet the needs of both sitting and sleeping. While sitting, an extension cantilever table unit can be pulled out from the wardrobe in the middle
3d render
project

Perspective

At night time, we can pull the bed above the sitting unit. In one suit, there are two double beds. People can close the bed and have some space to sit, relax and enjoy the train route from windows in front
3d render
project

Perspective

In the suits, there is also a table for two people to sit, eat or drink something from the mini fridge near the table while enjoying the view from window in front of them
technical drawing
project

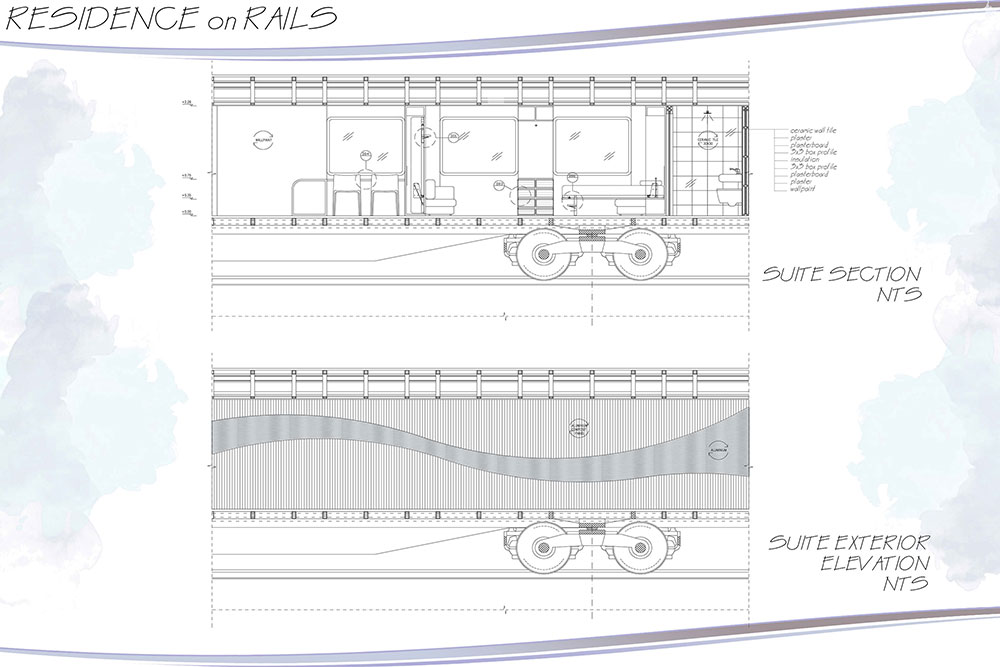

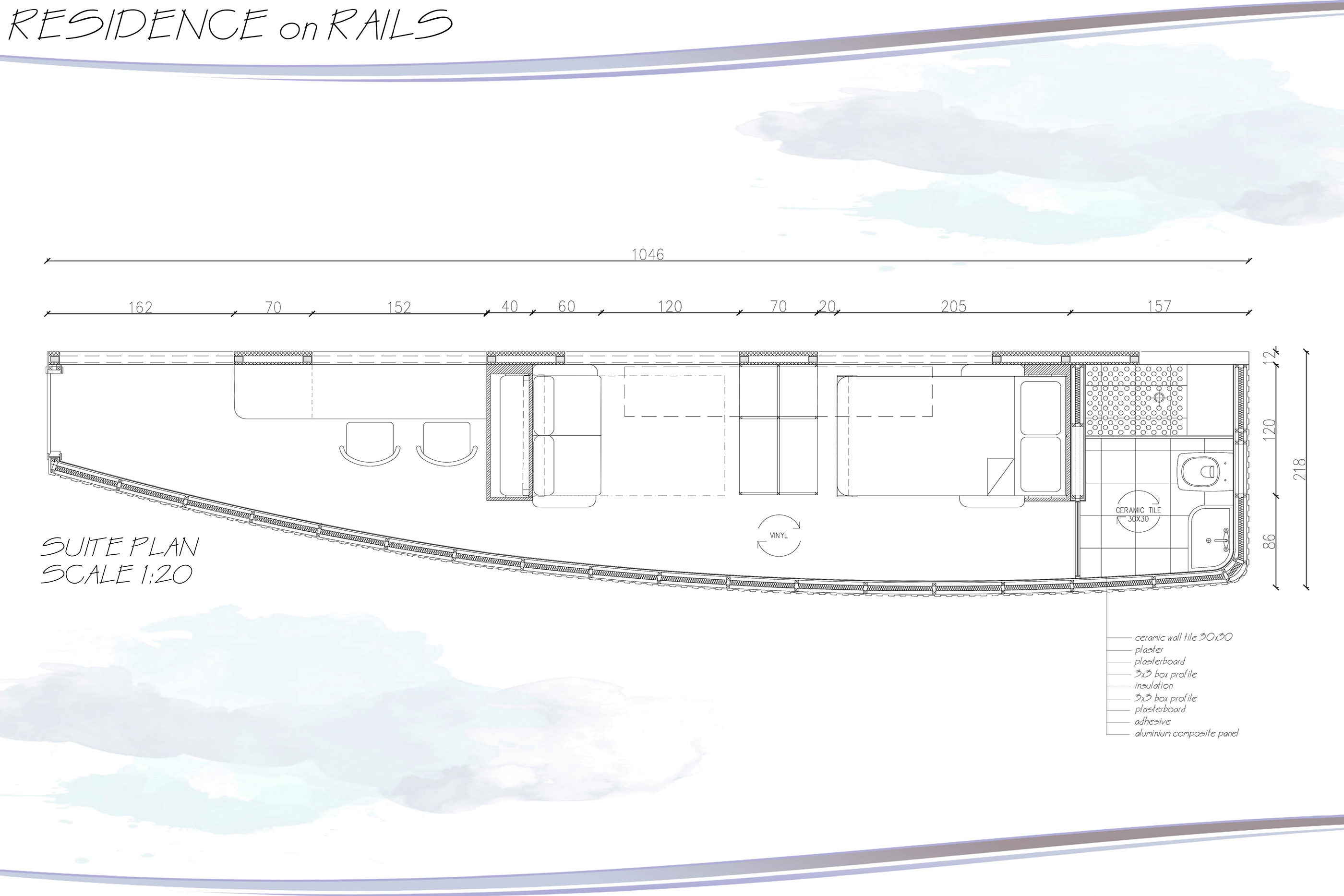

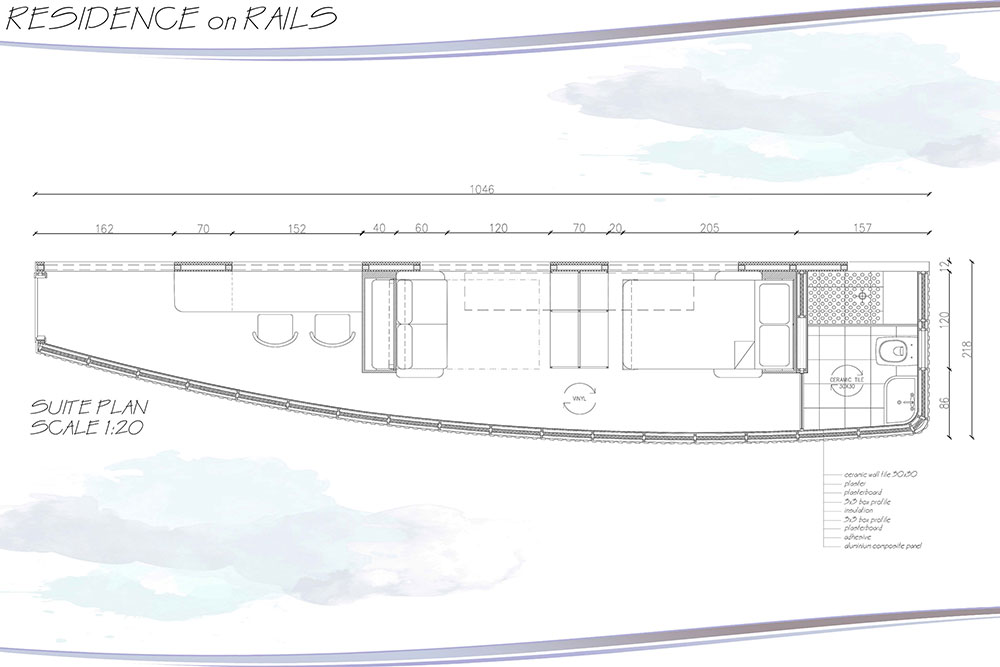

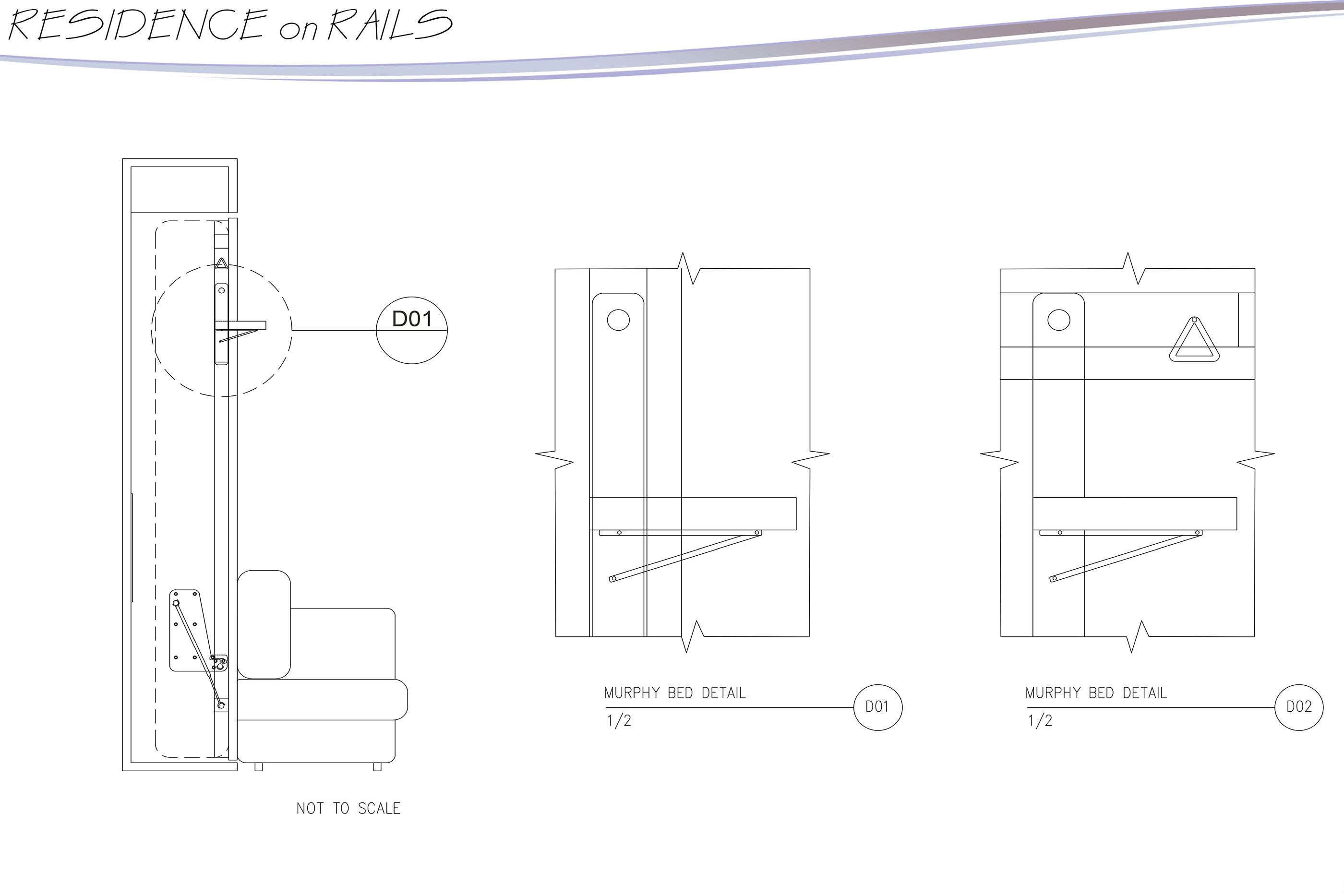

Suite Detail

1/20 scale



technical drawing
project

Suite Detail

1/20 scale



technical drawing
project

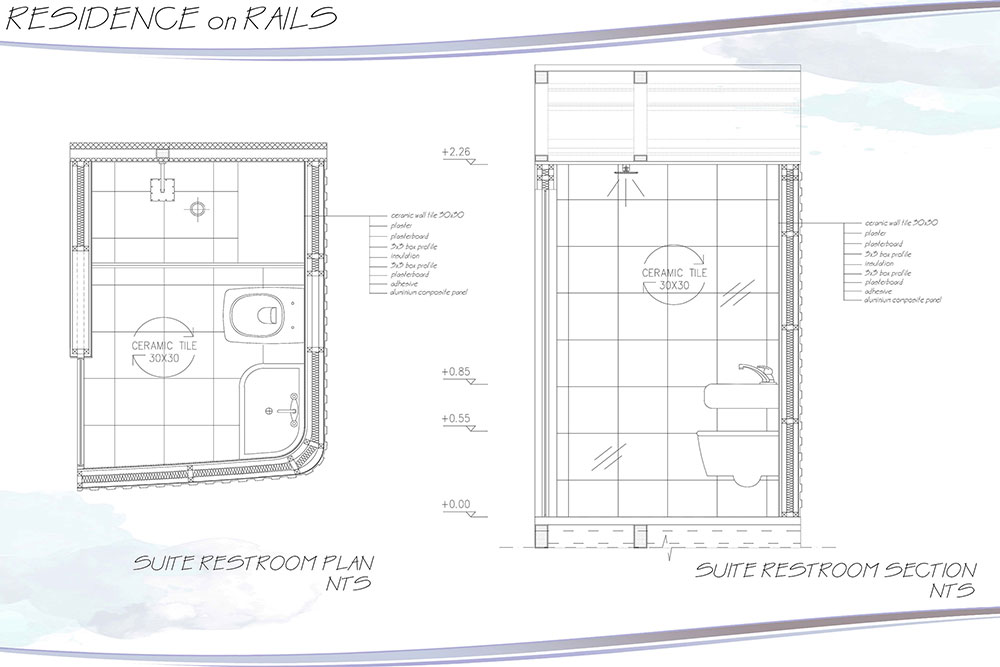

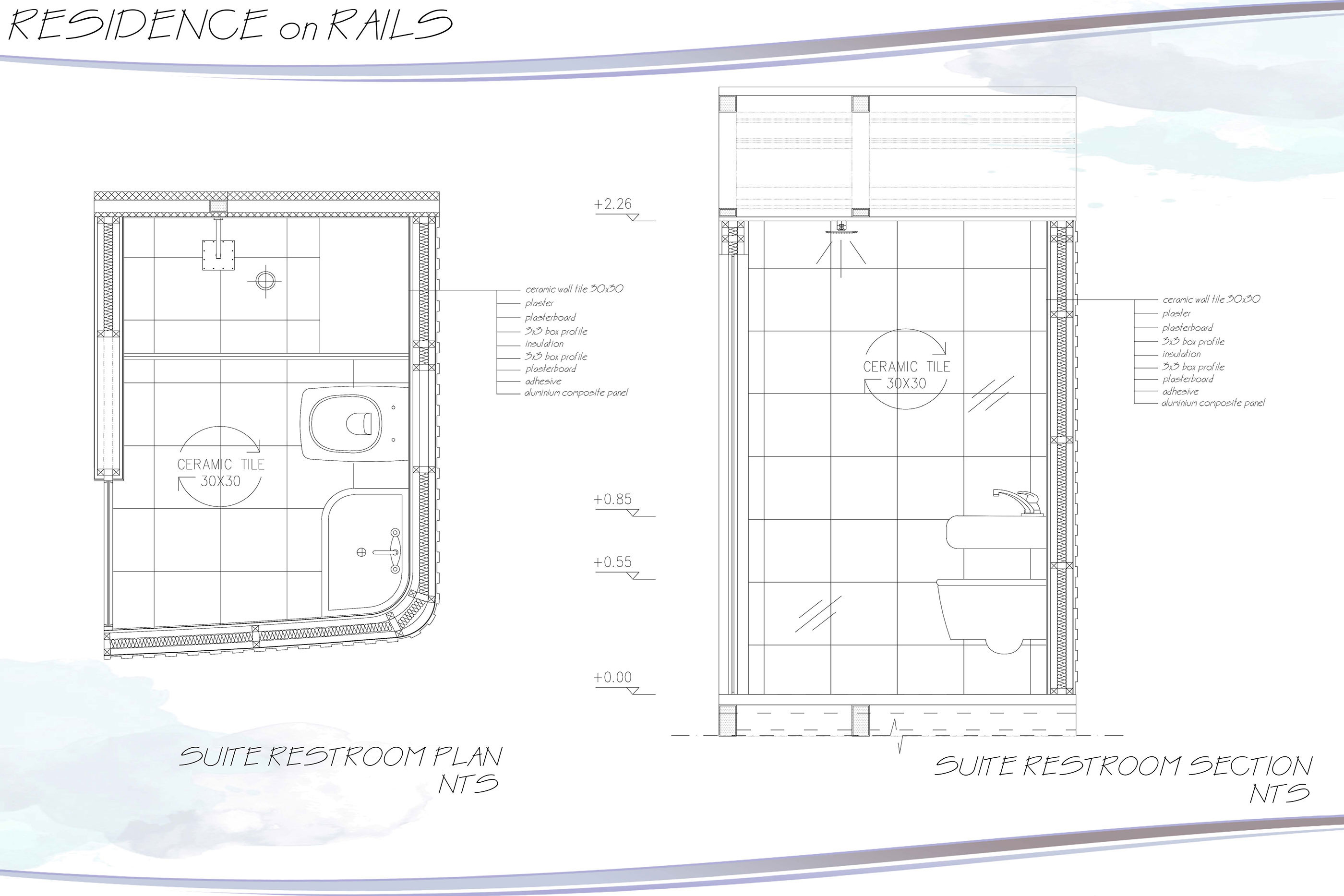

Suite Bathroom Detail

1/20 scale
technical drawing
project

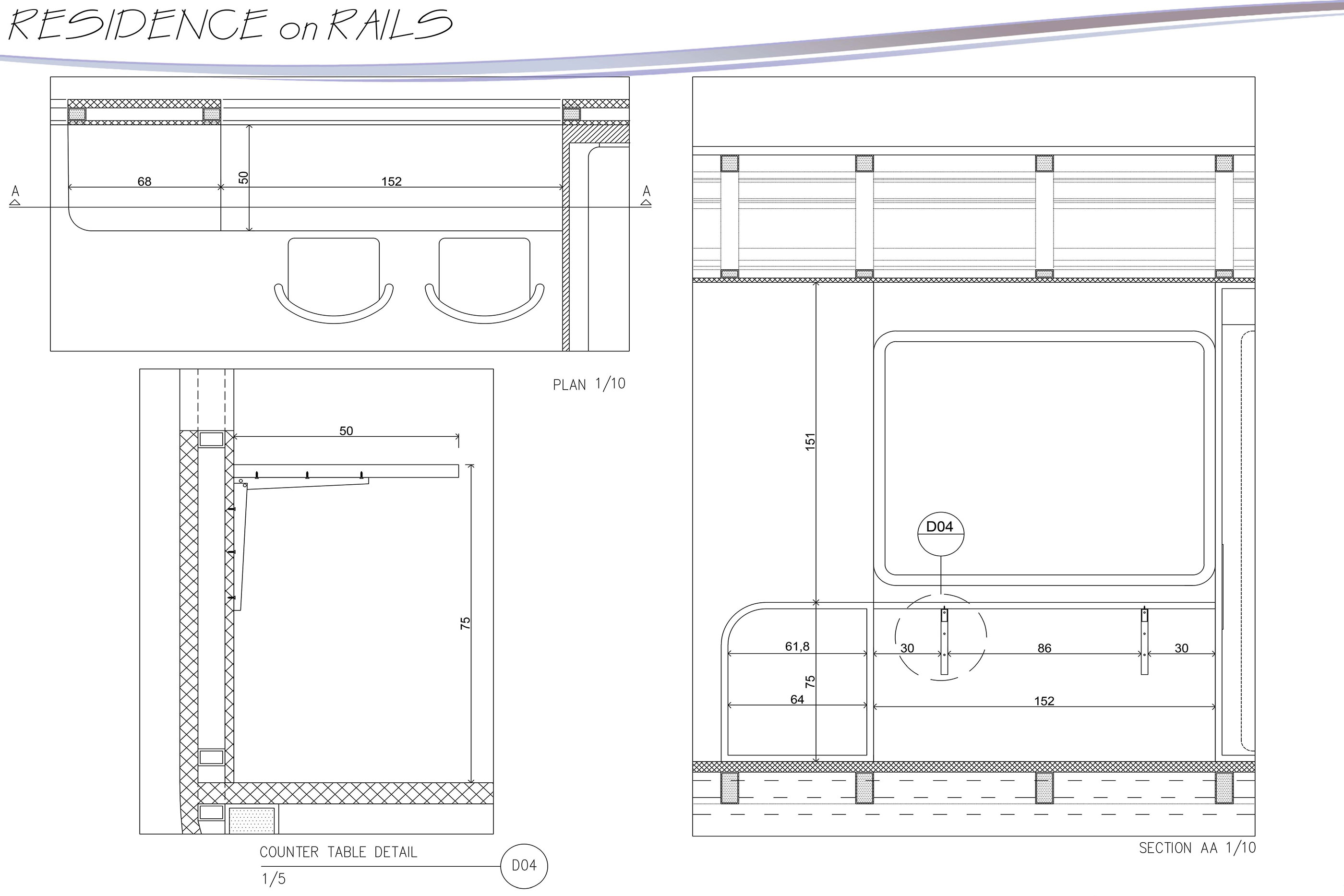

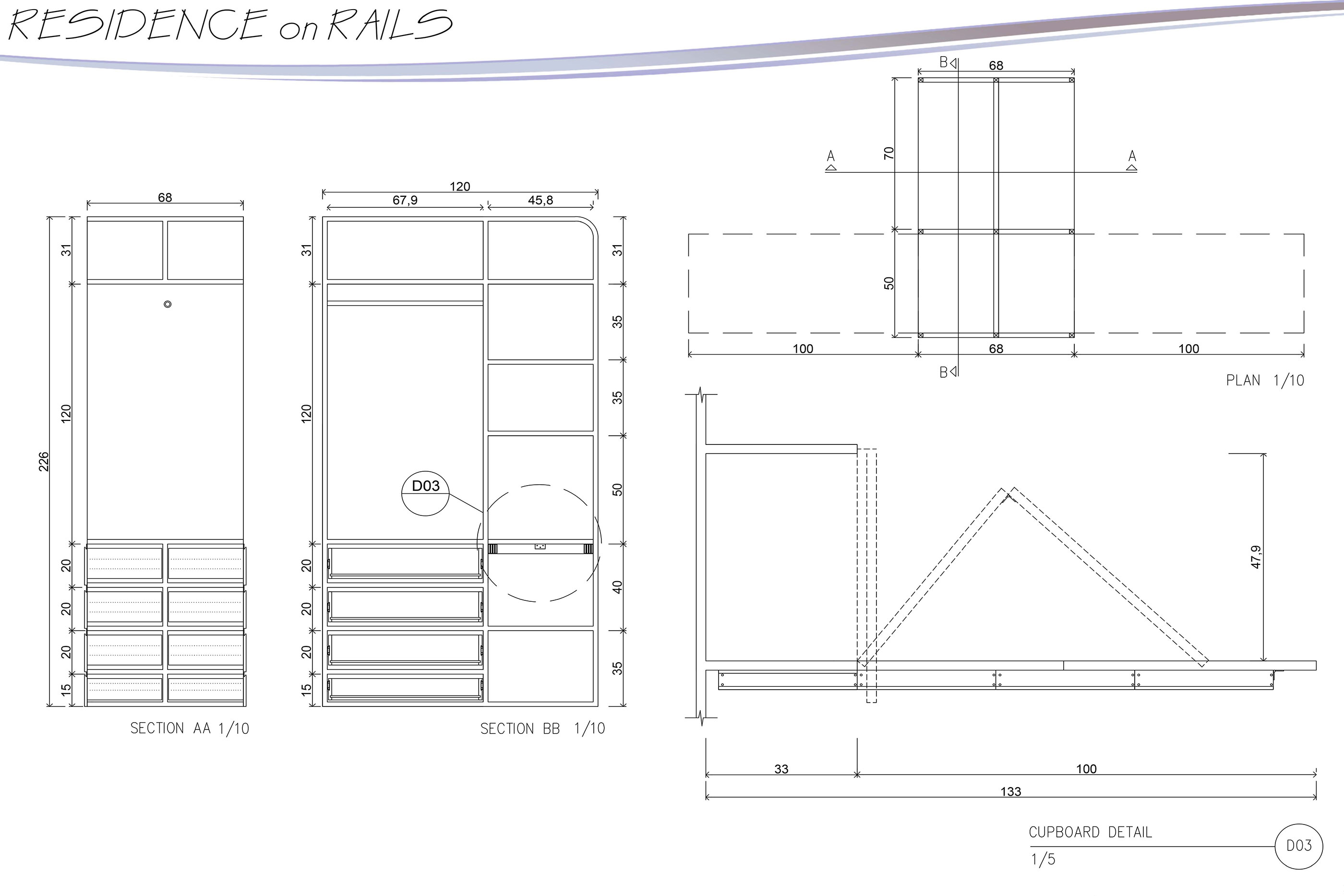

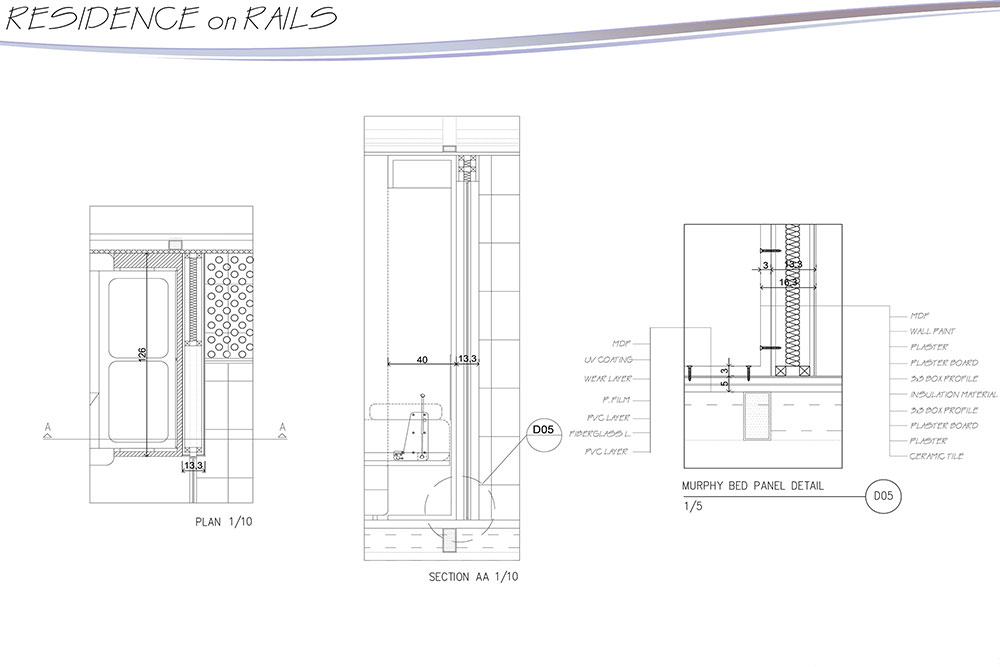

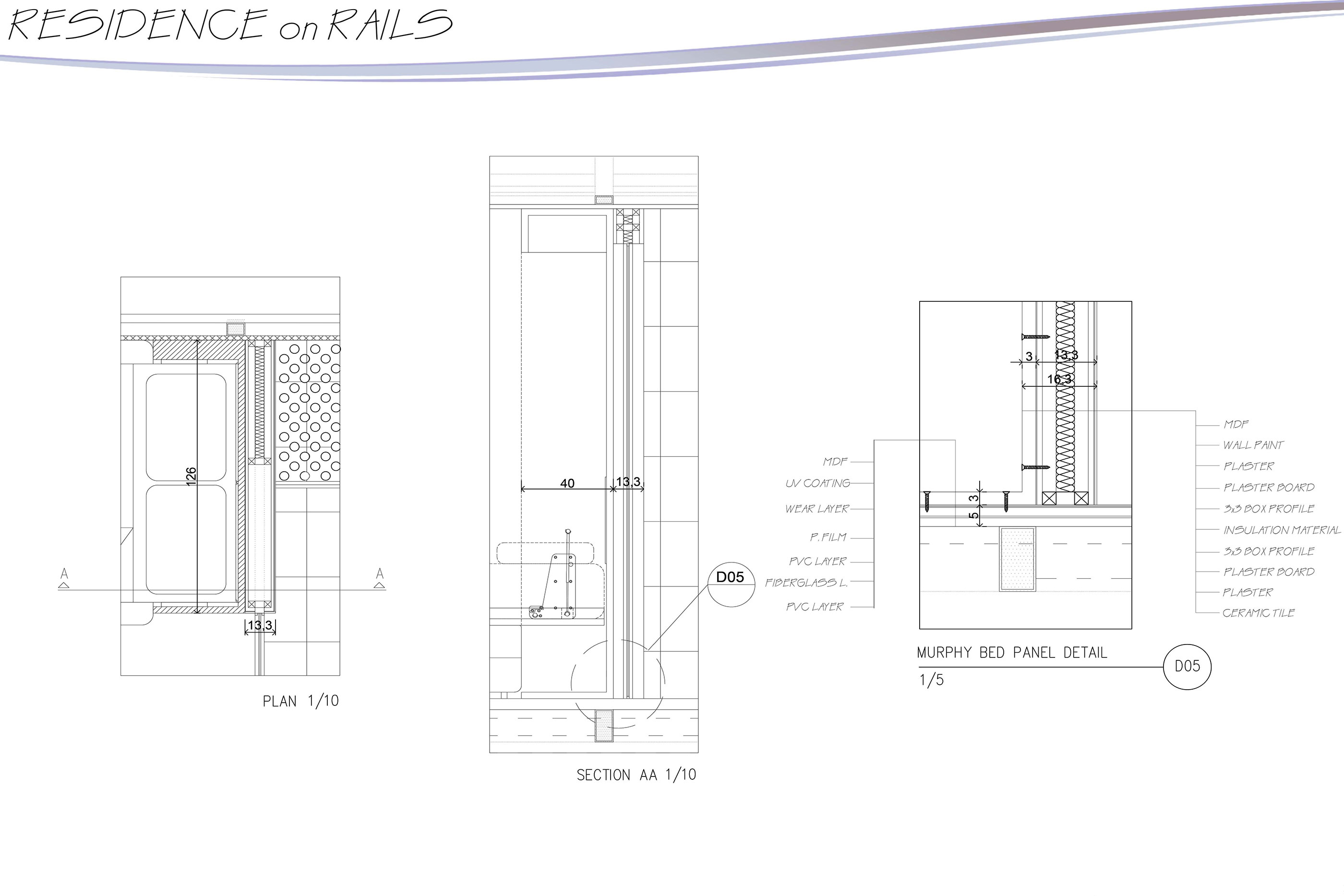

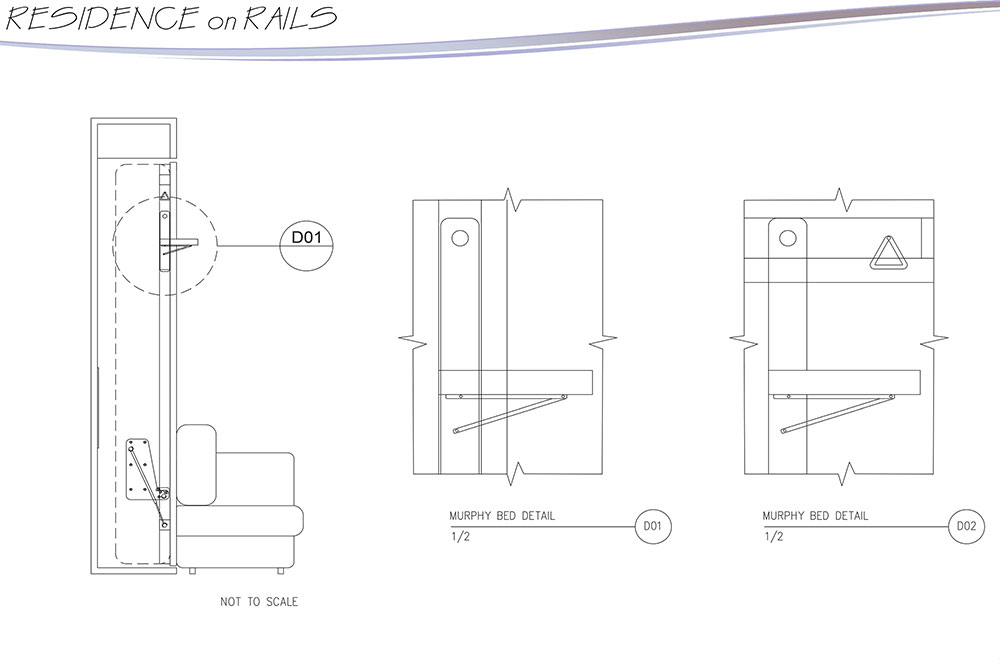

Detail Drawings


technical drawing
project

Detail Drawings


technical drawing
project

Detail Drawings


technical drawing
project

Detail Drawings


technical drawing
project

Detail Drawings
